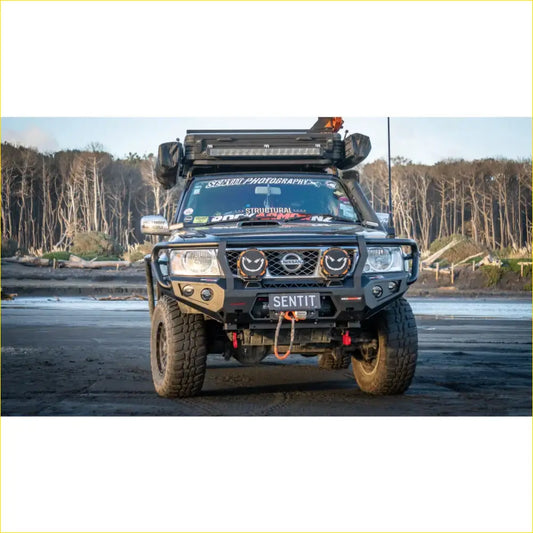

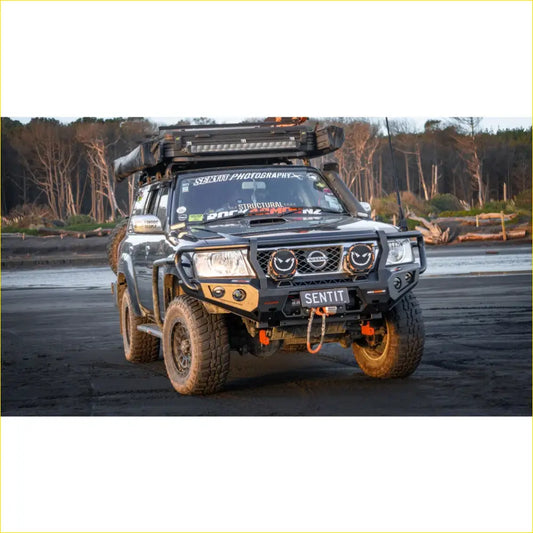

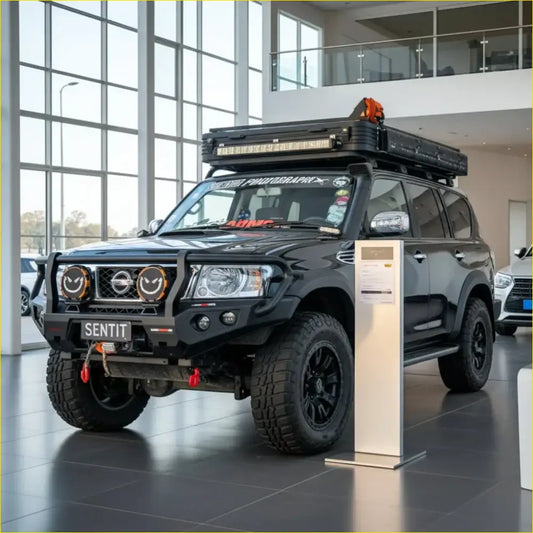

Rockarmor GT Hoop Bullbar

Experience the unrivaled transformation of your GU Patrol with the all-new, GT Bull bar from Rockarmor. The bull bar instills a captivating sense of aggression, elevating the appearance of your Hilux.

Equipped with rated recovery points, winch cradle, and high approach angles, you can rest assure the GT bull bar will allow you to tackle any track with confidence!

Features & Specifications:

Built in 3.2Tonne Rated Recovery Points (Each recovery point) *Soft Shackle Compatible)
51mm Top cross tube for maximum frontal protection
Durable 2.8mm High Quality steel construction for maximum protection
Designed for high approach angles (great for off-road)
Built in LED FOG lights & LED Indicator, compatible with factory controls
Extended Silver Centre Bash Plate (Protects Front)
ADR Complied Air bag compatible mounting system
Factory Sensor Compatible
Side under Protection panels Included
Twin Slotted Antenna Mounts located on top Cross Tube
Twin Hi-Lift jack points
Front Protection Buffers
Accommodation for a Electric Winch up to 12,000 pound (Built in winch plate)
Laser cut mounting Holes to accommodate for driving lights (Ability to mount 2 x 9" LED Driving Lights)
Shot blasted, Chemical Washed (for extra protection against rust) Finished off in a high quality black powder coat finish

ROCKARMOR PHANTOM 9" LED DRIVING LIGHTS

Rockarmor’s latest innovation, the Phantom 9 Lights are rugged off-road champions designed to light up the darkest highways and remote tracks, offering unparalleled performance and durability. Built to withstand the harshest conditions, these lights are dustproof and waterproof, ensuring reliability in any environment! Experience exceptional long-distance visibility, providing you with the confidence to conquer any terrain!

ROCKARMOR RECOVERY M8 12,000 Pound Winch

5 Year Manufacturers Warranty
7.2HP Motor
IP67 Rated (2 Hours Fully Submersible)
Wireless Controller (inbuilt receiver)
Controller with Extension Lead
Rockarmor Alloy Hawse Fairlead
Synthetic Winch Rope Pro Link
Control Box Mounting Bracket
Hand Saver Strap
Installation Guide Book

TECHY STUFF

IP RATING: IP68
DISTANCE: 1 LUX @ 1400 METRES
POWER: 396 WATTS PER PAIR
LED TYPE: 33 X OSRAM LEDS
COLOUR TEMP: 6500K
LUMENS: 13,000 EFFECTIVE LUMENS
FRAME: FULLY ADJUSTABLE 60 DEGREE ALUMINIUM FRAME
LENS: POLYCARBONATE
COOLING: HIGH SPEED PASSIVE COOLING SYSTEM
DAY LIGHT RUNNING LIGHT: BUILT IN

Specification

Installation Guide Book
Line Pull: 5,443kgs / 12,000lbs
Motor: Series Wound DC12V / 7.2HP
Gear Train: 3 Stage Planetary
Gear Ratio: 216:
Free Spooling Clutch with Rotating Gear Ring
IP67 Rated (2 Hours Fully Submersible)
Synthetic Winch Rope: 9.5mm x 28 metres
Wireless Receiver: Built into the Control Box
Isolator Switch: Built into the Control Box
Drum Size: 64mm x 224mm
Weight of Winch: 26kgs
Mounting Bolt Pattern: 254mm x 114.3mm
Dimensions: 535 X 162 X 170MM
Warranty: 5 Years Limited Electrical & Mechanical Combo Wieght:120kg

INSTALLATION

To comply with NZTA all daytime running lights should be installed separately to your headlights. Also note that the fog lights need to be adjusted to three degrees down.

If your vehicle's suspension is not upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the Steel Bumper & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will become bumpy which can possibly lead to further damage.

We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bullbar and body of the vehicle. This will allow for movement where the chassis & body move independently.
