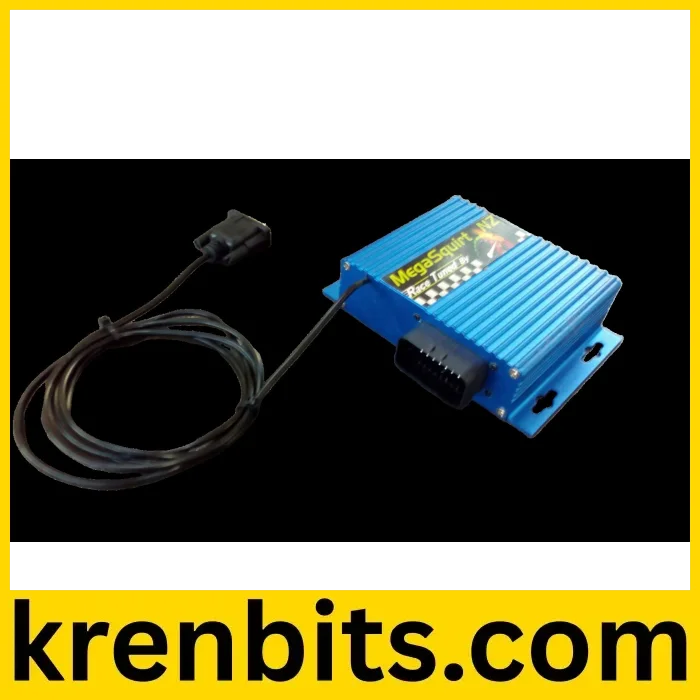

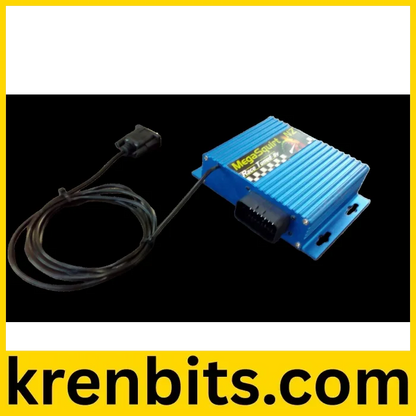

MicroSquirt Performance ECU Computer , Race

MS2 Microsquirt V2.2

 Microsquirt MS2 running the latest 3.34 Firmware

The MS2 is a HC9S12C64 processor from Motorola's HCS12 on a machine built Circuit board.

Able to control engines 1 cylinder to V8 Two Stroke, Four stroke and Rotary Runs 1-12 injectors,

Runs High Impedence injectors - and Low impedence with a Resistor pack (we can supply)

16 X 16 Fuel Tables, 12 X 12 Ignition tables Compatible with all Windows Software Runs narrow and wide band O2 sensor and compatible with all popular Wideband setups

Auto tune capability Datalogging Capability

Idle control - both on/off and PWM Can use TPS, AFM, and MAF inputs along with a specific ITB mode

On / Off Cam control - such as Vtec, VCT, VVT, Mivec etc Compatible with almost all standard vehicle sensors Easy to install and Tune

Suitable for most ignition systems, Hall Effect,EDIS,Variable Reluctor,Optical trigger,CAS,Points etc suitable for up to four coils, or eight cylinders with Wasted Spark.

Free installation of fuel base map to suit your engine to facilitate easy start-up if required

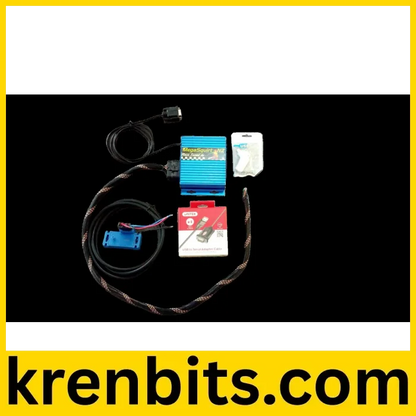

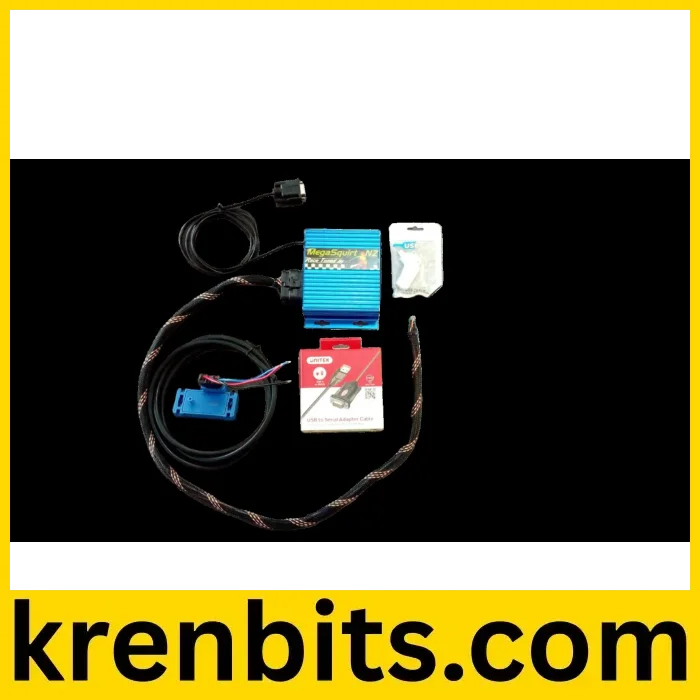

All software,drivers,vacuum hose,cables and loom supplied

Don't waste heaps of money on a Link, Microtech, Motec, Haltech, Maxx ECU as the Microsquirt will run your engine perfectly for a fraction of the price

Also can include for no extra fee Motorsport features such as: Launch control (great for shooting flames) Flat shift Boost Control Shift lights Table Switching- both fuel and ignition Flex Fuel Fan Control

Full installation and Dynotuning Services available

Backup Support available through Email

ECU comes with a 1 metre pigtail loom on AMPSEAL Connector Or a 2.5 metre loom for an additional $130

Comes with GM 3 Bar MAP sensor and hose

Comes with USB Tuning cable
