Levelling Kit or Lift Kit – Getting the Right Answer for Your Ute

It's one of the most common questions we get at KrenBits: should I get a levelling kit or a proper lift kit? On the surface, both raise your vehicle. But they do fundamentally different things, and choosing the wrong one means either spending more than you need to, or buying cheap and regretting it within 12 months. Here's the honest breakdown.

What Is a Levelling Kit?

A levelling kit — sometimes called an eco lift, spacer lift, or strut spacer — uses polyurethane or aluminium spacers to push the factory suspension components downward, effectively raising the front of the vehicle without replacing any spring or damping components. The name comes from the primary purpose: correcting the factory nose-high rake that many utes are built with to compensate for rear payload.

What a Levelling Kit Does Well

Levelling kits are inexpensive (typically $200–$450 NZD for a quality set), straightforward to install, and effective at what they're designed for — correcting the front-to-rear height balance. They're a good solution if your ute sits visibly nose-high when unladen and you want to correct that without a full suspension overhaul.

What a Levelling Kit Doesn't Do

A levelling kit does not improve suspension performance. It does not increase wheel travel. It does not improve damping, load handling, or ride quality. In fact, on some vehicles, running spacers with worn factory shocks can actually worsen ride quality by putting the factory shock beyond its optimal operating range. If you're expecting a levelling kit to transform your ute's offroad capability — it won't.

What Is a Lift Kit?

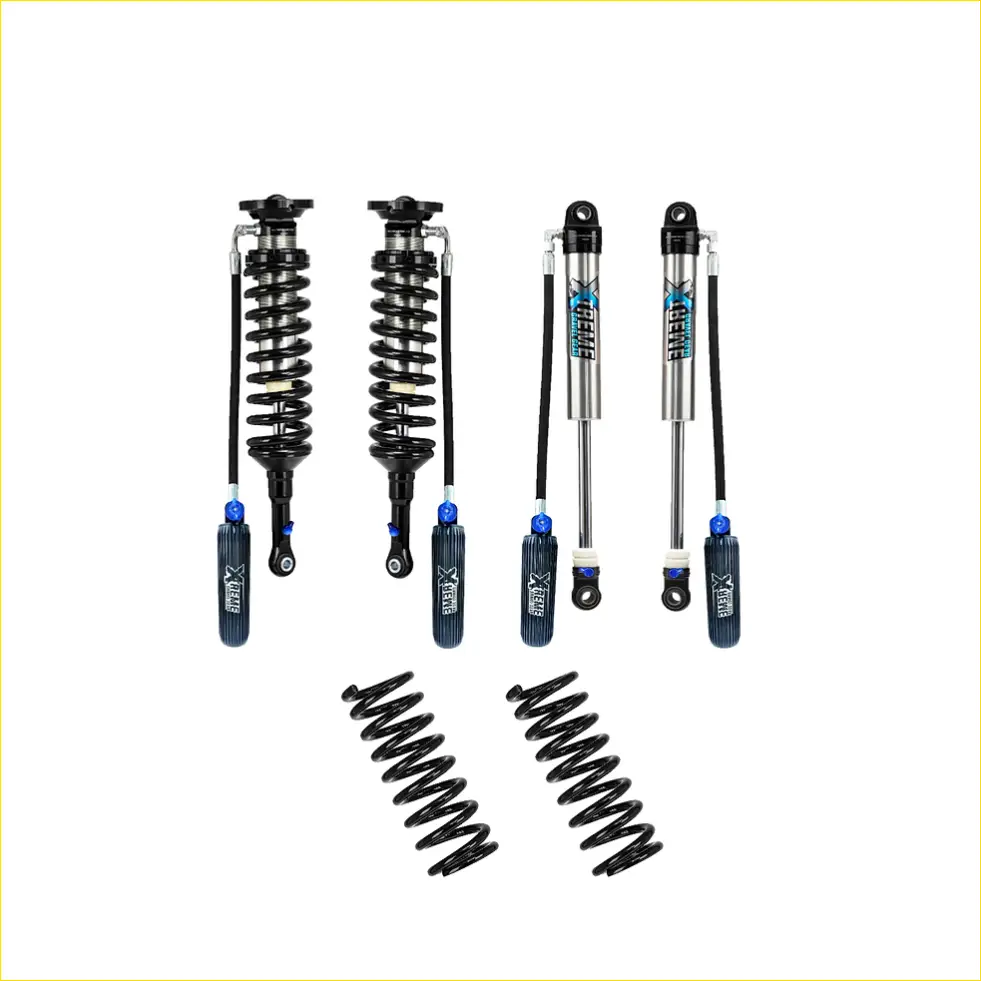

A proper lift kit replaces your factory springs and shock absorbers with higher-specification components engineered to deliver more ride height, more wheel travel, better damping, and improved load capacity. A quality lift kit from brands like Dobinsons, Lift Junkie, or RAW 4x4 doesn't just raise the vehicle — it makes the vehicle genuinely better at everything it does.

What a Lift Kit Does Well

More wheel travel means better traction on uneven terrain. Better spring rates mean improved load handling and towing stability. Better shock absorbers mean a smoother ride on NZ's corrugated gravel roads. A lift kit from the mid-range tier up will make your ute noticeably better in all conditions — not just taller. It also opens the door to a meaningful tyre upgrade in a way that a levelling kit simply doesn't.

The Key Differences at a Glance

Levelling Kit: Raises front 30–40mm. Uses factory shocks. Improves stance only. No performance gain. Cost: $200–$450 NZD.

Lift Kit: Raises front and rear 40–75mm. Replaces springs and shocks. Improves performance, ride quality, and capability. Enables tyre upgrades. Cost: $600–$1,800 NZD all-in for the kit.

When a Levelling Kit Makes Sense in NZ

A levelling kit is the right choice in a specific situation: your ute has a pronounced front-to-rear rake, your factory shocks are in good condition, you have no interest in offroad performance or larger tyres, and you simply want to correct the visual stance. It's a cosmetic fix, and as cosmetic fixes go, it's reasonable value. The moment you want more than just a corrected stance, step up to a proper lift kit.

When a Lift Kit Is the Right Call

If you want to run all-terrain tyres in a size larger than factory. If you regularly travel on gravel or unsealed roads. If you tow or carry loads and want improved stability. If you do any genuine offroad driving. If you're investing in your ute for the long term — these are all good reasons to bypass the levelling kit and invest in a full lift kit from the start. Browse our complete lift kit range to find the right option for your vehicle.

Why Buy From KrenBits?

Whether you need a levelling kit for a quick stance correction or a full lift kit for genuine performance improvement, KrenBits has you covered with free NZ-wide shipping and real product expertise. We'll help you spend your money in the right place the first time.

The Bottom Line

If you want to fix a nose-high stance on a ute you don't plan to modify further, a levelling kit does the job at minimal cost. If you want to genuinely improve your ute — ride quality, offroad capability, tyre options, towing performance — invest in a proper lift kit. The extra spend is returned every time you drive the thing.
