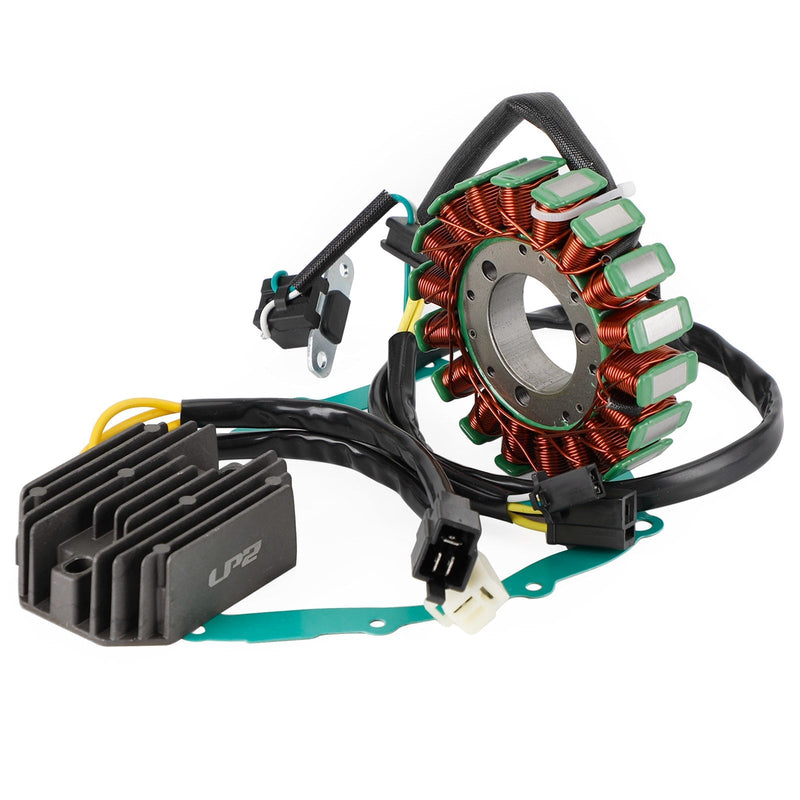

SUZUKI SV650 SV650S 99-02 GENERATOR STATOR 2-PLUG REGULATOR RECTIFIER GASKET

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

other specification:
Stator
Number of plugs: 2
Number of wires: 5
Number of pins: 2 + 3
Number of poles: 18
Interior diameter : 38 mm
Exterior diameter : 105 mm
Pick up pulsar coil included.

Replacement Part Number:
Stator Assy: 32101-19F00, 32101-19F10
Rectifier, regulator: 32800-24B01, 32800-24B11
Gasket, generator cover: 11483-19F00

Fits Make/Model/Year:
Fit for Suzuki SV 400 (VK53A) - 1998 - SV400N
Fit for Suzuki SV 400 - 1999 - SV400X
Fit for Suzuki SV 400 - 2000 - SV400Y
Fit for Suzuki SV 400 - 2001 - SV400K1
Fit for Suzuki SV 400 - 2002 - SV400K2
Fit for Suzuki SV 400 S (VK53A) - 1998 - SV400SN
Fit for Suzuki SV 400 S - 1999 - SV400SX
Fit for Suzuki SV 400 S - 2000 - SV400SY
Fit for Suzuki SV 400 S - 2001 - SV400SK1
Fit for Suzuki SV 400 S - 2002 - SV400SK2
Fit for Suzuki SV 650 - 1999 - SV650X
Fit for Suzuki SV 650 - 2000 - SV650Y
Fit for Suzuki SV 650 - 2001 - SV650K1
Fit for Suzuki SV 650 - 2002 - SV650K2
Fit for Suzuki SV 650 S - 1999 - SV650SX
Fit for Suzuki SV 650 S - 2000 - SV650SY
Fit for Suzuki SV 650 S - 2001 - SV650SK1
Fit for Suzuki SV 650 S - 2002 - SV650SK2

Package Includes:
1 x Generator Stator
1 x 2-Plug Voltage Regulator
1 x Crankcase Gasket

Regulator Plug:
If the connection block doesn't match yours exactly they can be unclipped by inserting small flat head screw driver or other suitable object and unclipping, similar to an Ethernet or telephone plug. Re-connect using same method. The 3 yellows can be replaced in any order.

Note:
Before installing your new stator regulator rectifier;

Regulator
Number of wires: 5
Number of plugs: 2
Number of pins: 3 + 2

There are 2 variations of this regulator. Single plug and two plug versions, please make sure this two plug version regulator is what you want.

There are two versions regulator of SV650/S 99-02, please check the part number and make sure you need the two plug version regulator.
Please check the images and specifications carefully before ordering paying close attention to the plug layout.

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

(Comes exactly as pictured.)

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
