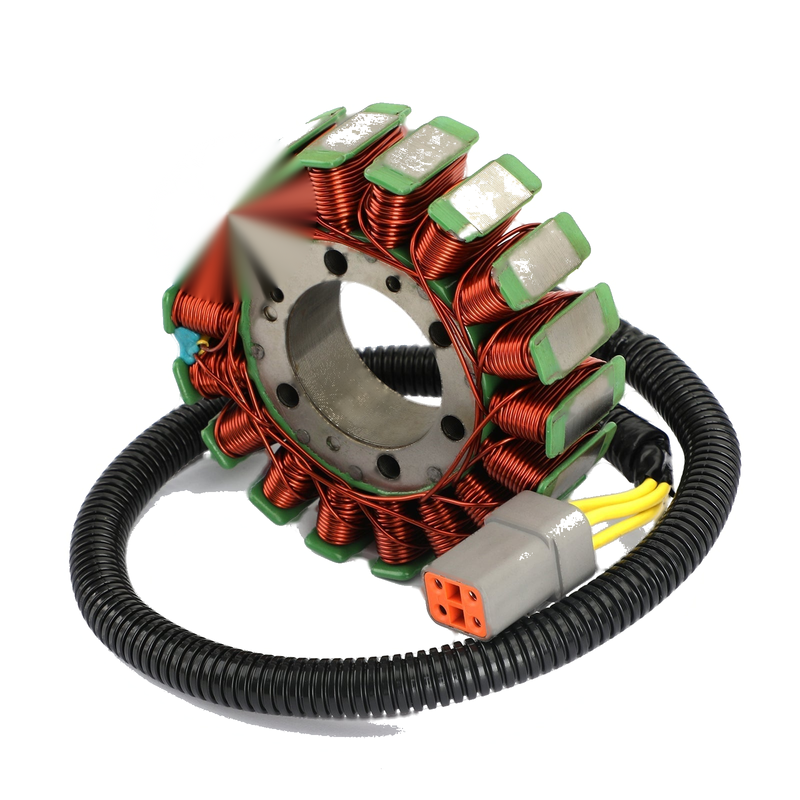

Ski-Doo 600 800 E-TEC Repl.# 420866060 420866065 420866068 Generic Stator Generator

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specification:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 42mm / 1.65 inches
Exterior diameter : 107mm / 4.21 inches
Pole's Thickness : 33.7mm / 1.32 inches
Pole's Width : 13mm / 0.32 inches

Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 5(+2)
Number of poles: 18

Replacement part number:
420866060
420866065
420866068

Fitment:
Ski-Doo GSX600 HO Limited SDI EFI L/C 2004-2008
Ski-Doo Legend 800 SDI EFI L/C 2003-2004
Ski-Doo Grand Touring 800 SDI EFI L/C 2003
Ski-Doo GSX 600 HO SDI EFI L/C 2004
Ski-Doo Legend 600 HO SDI EFI L/C 2004
Ski-Doo MX Z 600 HO SDI EFI L/C 2004
Ski-Doo MX ZX 600 HO EFI L/C -- 2005-2007
Ski-Doo MX Z 600 HO Adrenaline SDI EFI L/C 2005-2008
Ski-Doo GTX 600 HO Limited 2005-2007
Ski-Doo MX Z 600 HO Renegade SDI EFI L/C 2005-2008
Ski-Doo MX ZX 600 HO Carb L/C 2006
Ski-Doo MX ZX 600 HO Renegade SDI EFI L/C 2005-2008
Ski-Doo MX ZX 600 HO SDI EFI L/C -- 2005-2008
Ski-Doo Summit 600 HO Adrenaline SDI EFI L/C 2006-2008
Ski-Doo Expedition 600 HO TUV SDI EFI L/C 2006-2008
Ski-Doo GSX 600 HO Sport SDI EFI L/C 2005-2007
Ski-Doo GTX 600 HO Sport SDI EFI L/C 2005-2007
Ski-Doo MX ZX 600 HO Renegade EFI L/C 2006
Ski-Doo Summit 1000 Highmark EFI L/C 2005-2007
Ski-Doo Summit 1000 Highmark X SDI EFI L/C 2005-2007
Ski-Doo Expedition 600 HO SDI EFI L/C 2005, 2009
Ski-Doo Mach Z 1000 Adrenaline SDI EFI L/C 2006-2007
Ski-Doo Mach ZX 1000 SDI EFI L/C 2006-2007
Ski-Doo Mach Z 1000 SDI EFI L/C 2005
Ski-Doo Mach ZX 1000 EFI L/C 2007
Ski-Doo MX Z 1000 SDI Renegade RT EFI L/C 2007
Ski-Doo MX Z 600 HO Blizzard SDI EFI L/C 2007
Ski-Doo MX Z X-RS 600 HO SDI EFI L/C 2007
Ski-Doo MX ZX 600 EFI L/C 2006
Ski-Doo Skandic 600 HO SUV SDI EFI L/C 2008
Ski-Doo Summit 1000 Highmark SDI EFI L/C 2006
Ski-Doo Summit 1000 Highmark X EFI L/C 2005
Ski-Doo Expedition 600 HO TUV Rev-XU SDI EFI L/C 2009
Ski-Doo Expedition 600 HO TUV XU SDI EFI L/C 2010
Ski-Doo Expedition 600 HO TUV XU SE SDI EFI L/C 2010
Lynx Adventure 600 GT 2006-2010
Lynx Xtrim Commander 600 2009
Lynx Xtrim Commander 600 SDI Limited 2010
Lynx Xtrim Commander 600 SDI 2010
Lynx Xtrim 600 2008
Lynx Sport Touring 800 2003-2004
Lynx ST 600 2007
Lynx Rave 600 HO 2008
Lynx Rave RC 600 HO 2006-2007
Lynx Rave Xtrim N-duro 600 HO 2006-2007
Lynx YETI 600 2006
Lynx YETI 600 HO 2007-2008
Lynx Enduro 600 HO 2005
Lynx Sport Touring 600 HO 2005

Package:
1x Generator Stator Coil

Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
