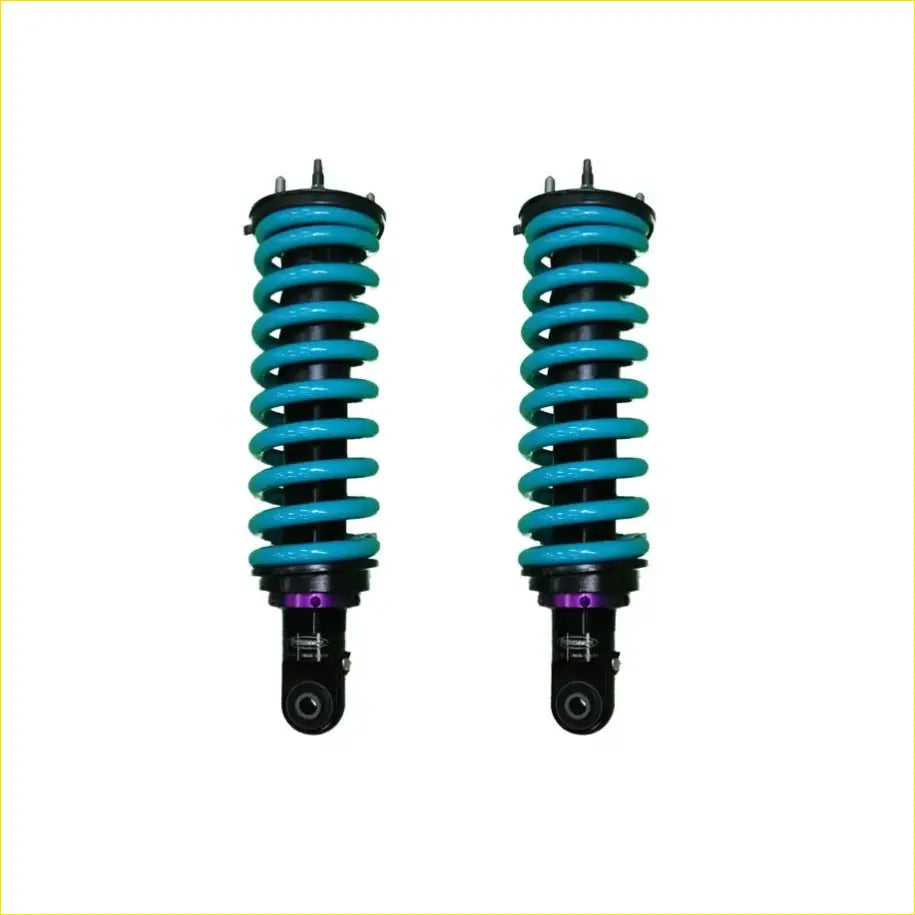

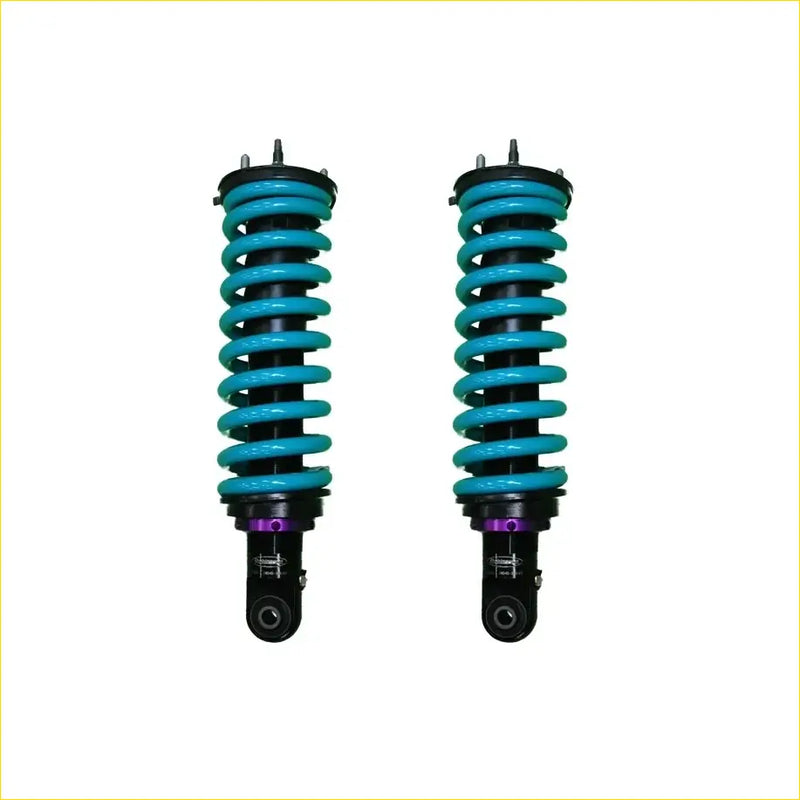

Ford Ranger Next Gen (2022 on) - Dobinsons IMS Monotube Front Lift -

Dobinsons IMS monotube shock absorbers are designed for next level performance over twin tube shocks in those hot, harsh, demanding conditions. By utilising the monotube design, Dobinsons IMS shock absorbers are able to resist fade far longer on corrugated roads, long or hard working 4WD trips, towing or racing conditions. The larger 50 and 60mm high flow pistons reduce internal pressures, reduce the heat generated, transfer heat to the body for faster cooling and offer improved damping performance and vehicle control at higher shaft speeds on rough terrain and during big impacts. Threaded bodies on struts allow for fine tuning of height and offer further improvements in cooling. The micro polished, hard chromed and heat treat shock shaft, CNC aluminium high flow race inspired piston, and DOM seamless tubing body provides the ultimate in performance and off-road durability. Composite piston wear bands, high quality Fuchs oil and a race style 3-stage sealing system offer the lowest levels of friction whilst maintaining durability and longevity without the need for frequent rebuilding or servicing. Dobinsons team of engineers spend hundreds of hours of testing and tuning the shim stacks and damping Characteristics in each IMS shock to ensure a balance of comfort, handling, vehicle control and off-road performance - Enjoy the ride

Type	Ranger
Model	Next Gen RA - PU - T6.2
Year	2022 on
Suspension Type	Coil Spring Front
Front Lift	50-75mm
Detail	4x4 and 4x2 Highrider
Shock Absorber Type	IFP/IMS Monotube
Piston Size	50/60mm CNC Machined High Flow Billet Aluminium Race Piston
Shock Body	3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D.
Sealing System	Heavy Duty 3 Stage FKM HNBR
