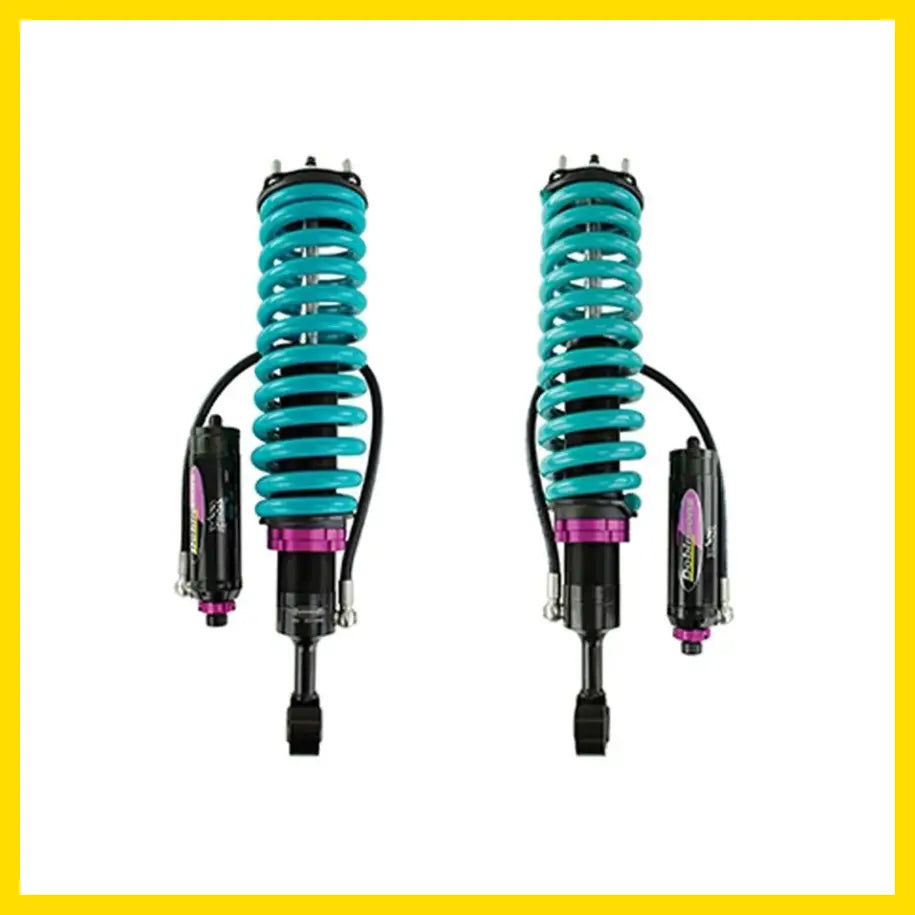

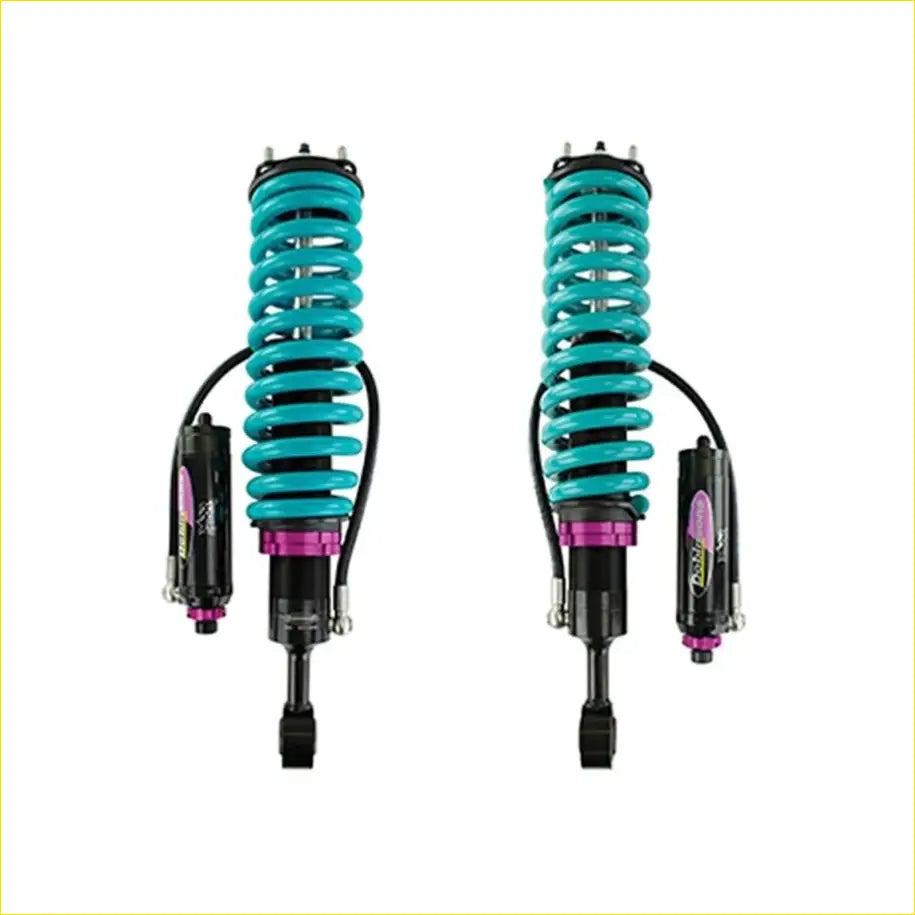

Ford Ranger PX1 & PX2 (08/2011 to Mid 06/2018) - Dobinsons Monotube

Type: Ranger Model: PX1 & PX2 Year: 08/2011 to Mid 06/2018 Suspension Type: Coil Spring Front Front Lift: 40-55mm Detail: 4x4 Chassis Mounted Front Bump Stop Models Only Also Suits 4x2 Highrider 3-Way Damping Adjustment Remote Reservoir (MRA)* MRR and MRA shocks come with generic mounting Brackets. The kit contains: 2x Dobinsons Front Coil Springs  2x MRA19-A092 - Monotube Remote Reservoir (3-Way Adjustable) Front Shock absorbers Adjustable Spring Seat Height X = 190mm / 7.48” Upgrade to Pre-Assembled Shocks with New Strut Tops (SC19-009) Optional Upgrades: 1x RM19-002 - Reservoir Mounting Bracket Kit * Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength 1x UCA19-004K - Upper Control Arms (Pair) Chrome-Moly Tubular 3º Castor Built In Rubber Bushes Ball Joint Not Included

Vehicle Fitment	Ford Ranger PX1 & PX2 (08/2011 to Mid 06/2018)
Lift Height	40-55mm (Front)
Shock Absorber Type	Monotube Remote Reservoir (MRA) 3-Way Adjustable
High Speed Compression	10 Stage Adjustable
Low Speed Compression	20 Stage Adjustable
Rebound Adjustment	15 Stage Adjustable
Shaft Material	5140 HV900 Hard Chrome Plated, Heat Treated Steel
Reservoir Material	6063 Honed Aluminium
Sealing System	Upgraded 3 Stage FKM-HNBR
