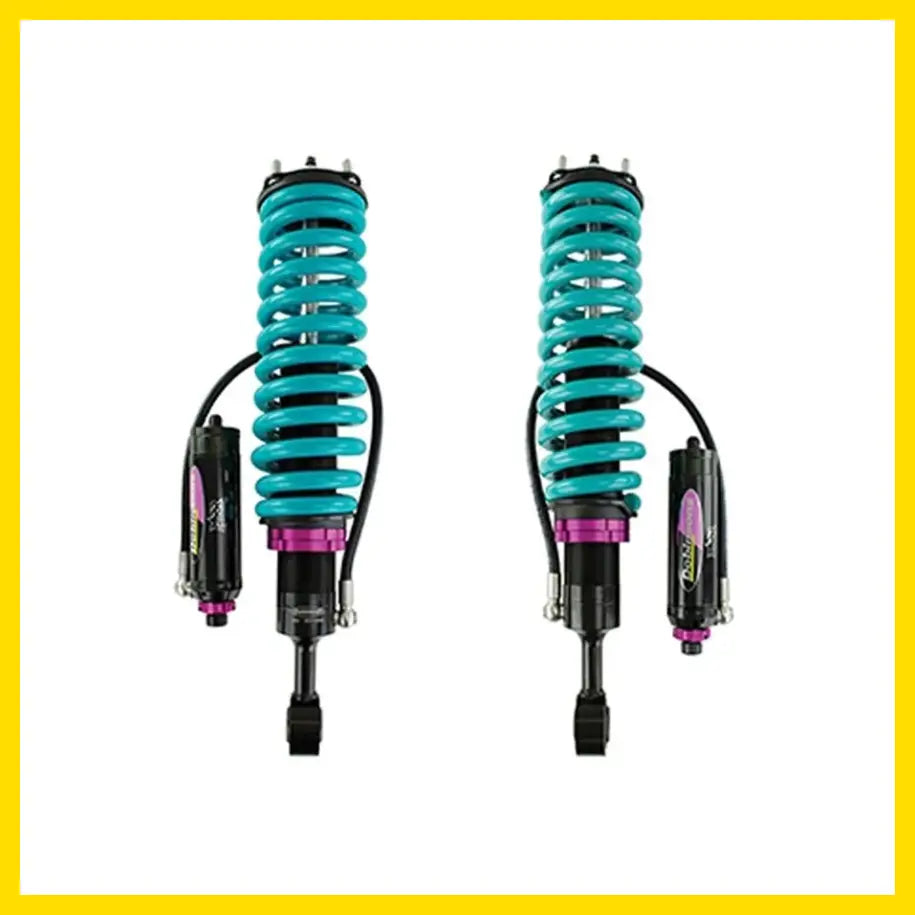

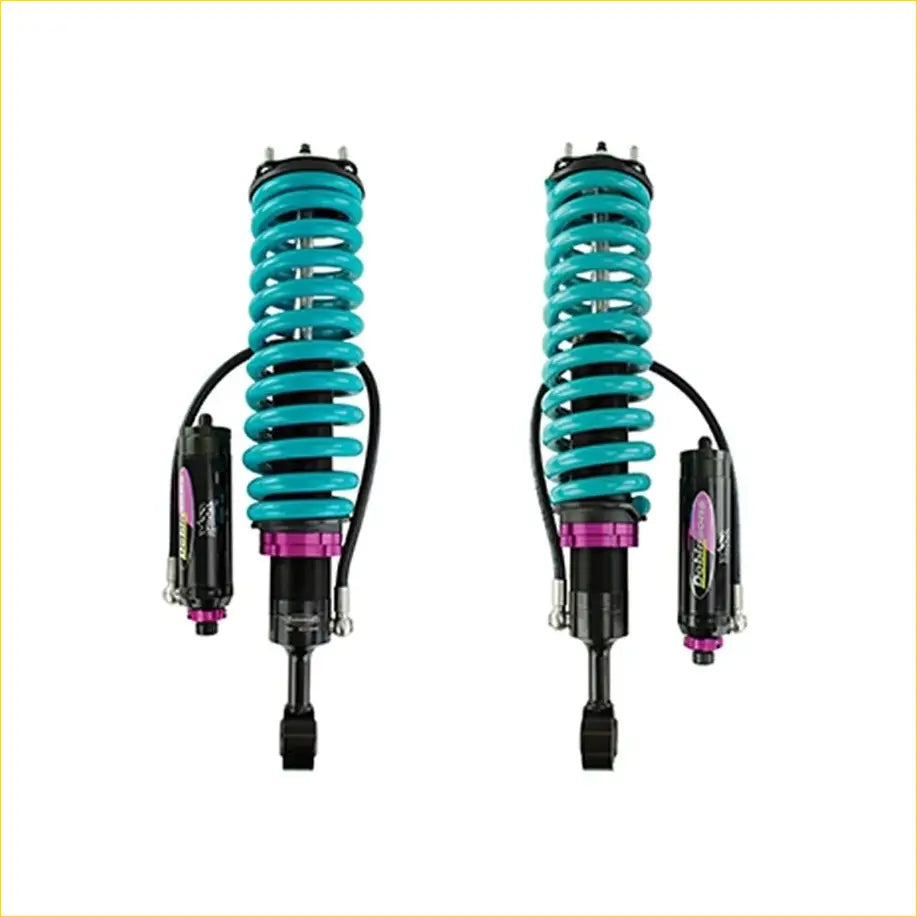

Isuzu DMax (05/2012 to MY 2020) - Dobinsons Monotube Remote Reservoir
NOW
$3,833.81
afterpay
Or 4 interest-free payments of
$958.45
Upgrade
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Built on the back of the race winning Monotube Remote Reservoir (MRR) shock absorbers, Dobinsons new range of MRR Adjustable shock absorbers combine the best in high performance race-bred Monotube technology, with an all new 3-way damping adjustment system to turn your 4x4 into the ultimate off-road machine. Each component of the MRR shock absorber has been refined and improved to offer a higher level of ride quality, vehicle control and shock absorber performance. The new 6063 honed aluminium reservoir, revised light-weight floating piston, Carbon Fibre/PTFE/Disulphide composite wear band, improved 3-stage sealing system and the ability to run lower gas pressure with the addition of the reservoir compression adjuster, have combined to provide massive reductions in shock absorber friction, resulting in an improved vehicle ride and damping performance. The revised sealing design now provides a 3 stage FKM-HNBR shaft seal system that, when combined with the reduced operating frictions, provides a vastly increased service life with reduced wear. The Micro-polished, hard chromed and heat treated shock shaft, revised CNC aluminium high flow race piston, and DOM Seamless tubing body provides the ultimate in performance and off-road durability. The 3-way adjustment design reduces the main piston working load, distributing heat more evenly between the main piston and the reservoir piston for reduced operating temperatures, and allows quick and easy damping changes for the ultimate in shock tunability in varying terrain and vehicle loads, to keep you controlled and comfortable. Enjoy the ride...
| Vehicle Compatibility | Isuzu D-Max 2nd Gen (05/2012 to MY 2020) |
| Shock Type | Monotube Remote Reservoir (MRA) |
| Damping Adjustment | 3-Way (10-stage high-speed compression, 20-stage low-speed compression, 15-stage rebound) |
| Front Lift Height | 40-50mm |
| Shock Shaft | 18/22mm Micro-Polished, Hard Chromed, Heat Treated Steel |
| Reservoir Material | 60mm 6063 Aluminium Remote |
| Piston Type | 50/60mm CNC Machined High Flow Billet Aluminium Race Piston |
| Design | Fully Rebuildable, Direct Bolt-On |
| Springs Included | 2x Dobinsons Front Coil Springs (Pair) |
| Pre-Assembled | Shocks with New Strut Tops (SC59-002) |
