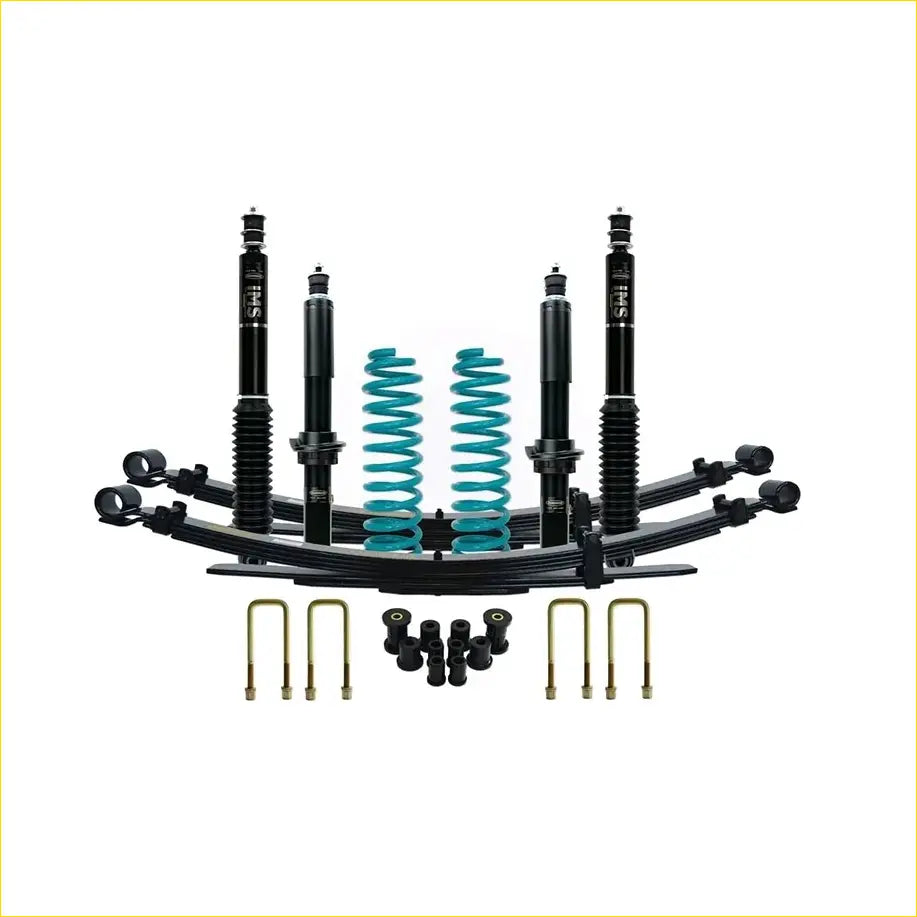

Isuzu DMax (Mid 2020 on) - Dobinsons IMS Monotube Lift Kit

Type: D-Max 3rd Generation Model: TFS40 Year: Mid 2020 on Suspension Type: Coil Spring Front / Leaf Spring Rear Front Lift: 40mm Rear Lift: 40mm Detail: V-CROSS 3.0L Turbo Diesel Single Cab / Dual Cab IFP/IMS monotube shock absorbersThe kit contains:2x Dobinsons Front Coil Springs 2x IMS21-50470 - IFP Monotube Front Shock absorbers Adjustable Spring Seat Height X = 195mm / 7.48” 2x IMS43-50081B - IFP Monotube Rear Shock absorbers 1x PB21-1111K - Polyurethane Bush Kit 4x U-bolts 2x Dobinsons Rear Leaf SpringsRecommended Upgrades:Upgrade to Pre-Assembled Shocks with New Strut Tops (SC59-002) 2x SK21-065 - Greasable Shackles & 2x SP59-060 - Greasable Shackle Pins 1x WA21-584K - Brakeline Extension Kit* Must Be Fitted With Dobinsons ShocksOptional Upgrades:1x UCA21-216K - Upper Control Arm Forged Aluminium - (Pair)Non-Adjustable Increased Castor Without Ball Joint 1x DD21-590K - Diff Drop Kit* Decreases CV Angle

Vehicle Type	D-Max 3rd Generation
Vehicle Model	TFS40
Vehicle Year	Mid 2020 on
Suspension Type	Coil Spring Front / Leaf Spring Rear
Front Lift	40mm
Rear Lift	40mm
Shock Absorber Type	IFP/IMS Monotube
Front Shock Absorber Model	IMS21-50470
Rear Shock Absorber Model	IMS43-50081B
Adjustable Spring Seat Height	195mm
Piston Size	50/60mm CNC Machined High Flow Billet Aluminium
Shock Body Construction	3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D.
Corrosion Protection	EDP Surface Protection
