Isuzu DMax (Mid 2020 on) - Dobinsons Monotube Remote Reservoir

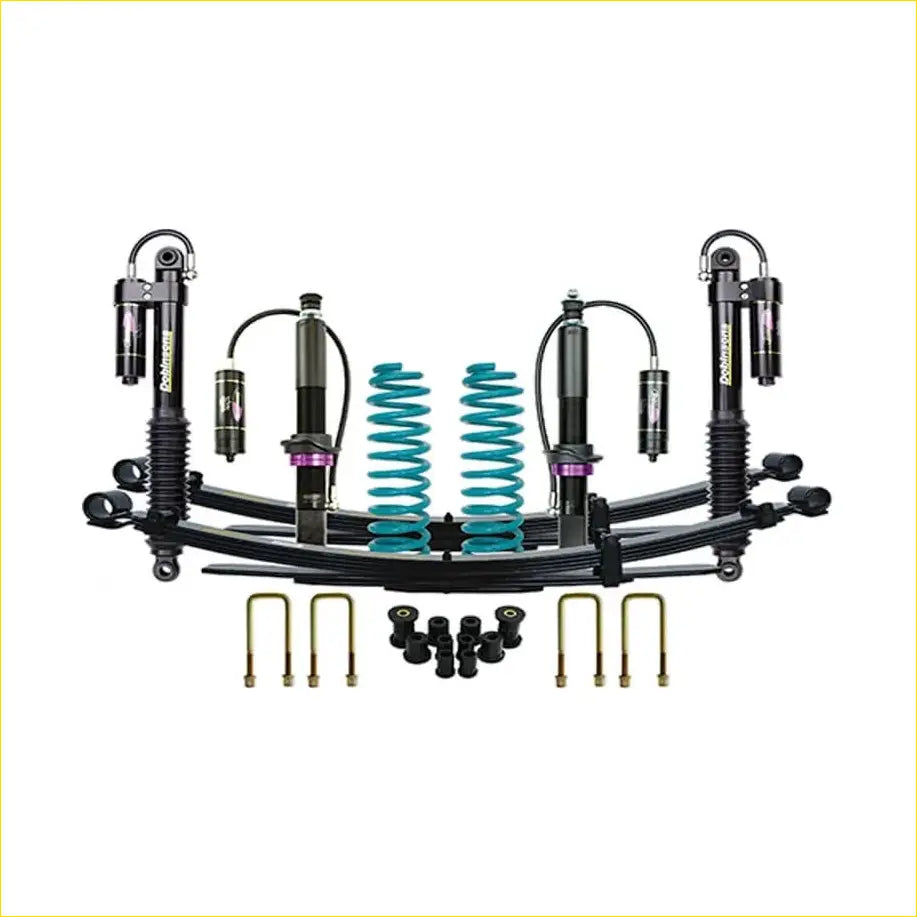

Type: D-Max 3rd Generation Model: TFS40 Year: Mid 2020 on Suspension Type: Coil Spring Front / Leaf Spring Rear Front Lift: 40mm Rear Lift: 40mm Detail: V-CROSS 3.0L Turbo Diesel Single Cab / Dual Cab Nonadjustable Remote Reservoir (MRR)* MRR and MRA shocks come with generic mounting Brackets.The kit contains:2x Dobinsons Front Coil Springs 2x MR21-50470 - Monotube Remote Reservoir nonadjustable Front Shock absorbers Adjustable Spring Seat Height X = 195mm / 7.48” 2x MR43-50081B - Monotube Remote Reservoir nonadjustable Rear Shock absorbers 1x PB21-1111K - Polyurethane Bush Kit 4x U-bolts 2x Dobinsons Rear Leaf SpringsRecommended Upgrades:Upgrade to Pre-Assembled Shocks with New Strut Tops (SC59-002) 2x SK21-065 - Greasable Shackles & 2x SP59-060 - Greasable Shackle Pins 1x WA21-584K - Brakeline Extension Kit* Must Be Fitted With Dobinsons ShocksOptional Upgrades:1x UCA21-216K - Upper Control Arm Forged Aluminium - (Pair) Non-Adjustable Increased Castor Without Ball Joint 1x DD21-590K - Diff Drop Kit* Decreases CV Angle

Make	Isuzu
Model	D-Max
Series	3rd Gen - MY 2020 on
Suspension Type	Coil Spring Front / Leaf Spring Rear
Front Lift	40mm
Rear Lift	40mm
Shock Type	Monotube Remote Reservoir (MRR)
Outer Body Diameter	56mm & 66mm
Bore Diameter	50mm & 60mm
Wall Thickness	3mm Heavy Duty
