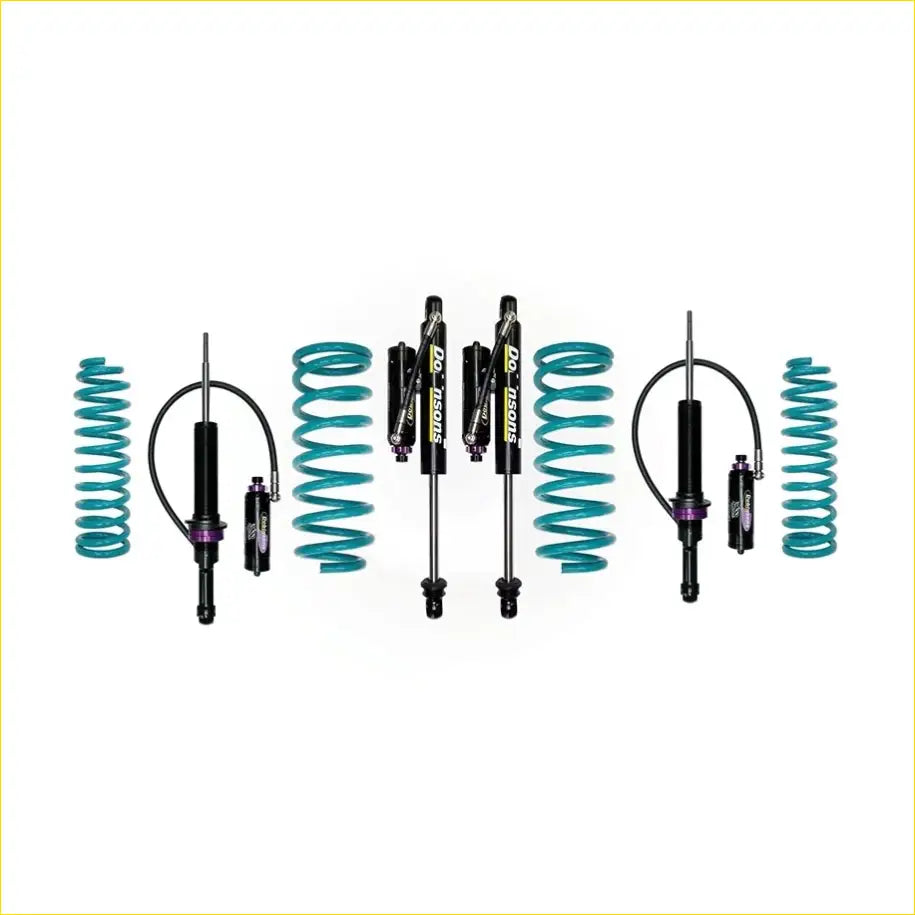

Isuzu MU-X UCS40 (Mid 2021 on) - Dobinsons Monotube Remote Reservoir

Built on the back of the race winning Monotube Remote Reservoir (MRR) shock absorbers, Dobinsons new range of MRR Adjustable shock absorbers combine high performance Monotube technology with an all new 3-way damping adjustment system for your 4x4. Each component has been refined to offer a higher level of ride quality, vehicle control, and shock absorber performance. The new 6063 honed aluminium reservoir and revised light-weight floating piston significantly reduce shock absorber friction, improving vehicle ride and damping. An upgraded 3-stage FKM-HNBR shaft seal system ensures vastly increased service life with reduced wear. Micro-polished, hard chromed shock shafts, CNC aluminium high flow race pistons, and DOM Seamless tubing bodies provide ultimate performance and off-road durability. The 3-way adjustment design effectively distributes heat, allowing quick damping changes for optimal tunability in varying terrains and vehicle loads. This ensures controlled and comfortable driving, making your 4x4 the ultimate off-road machine.

Vehicle Make	Isuzu
Vehicle Model	MU-X UCS40
Vehicle Year	Mid 2021 onwards
Suspension Type	Coil Spring Front / Coil Spring Rear
Front Lift	40-45mm
Rear Lift	45mm
Damping Adjustment	3-Way (High-Speed Compression, Low-Speed Compression, Rebound)
Shock Type	Monotube Remote Reservoir (MRA)
Shock Shaft	18/22mm Micro-Polished, Hard Chromed
Reservoir	60mm 6063 Aluminium Remote
Sealing System	Upgraded 3 Stage FKM-HNBR
