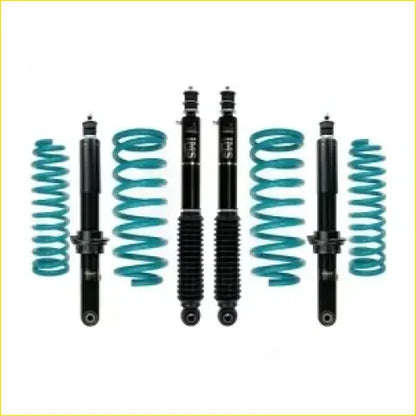

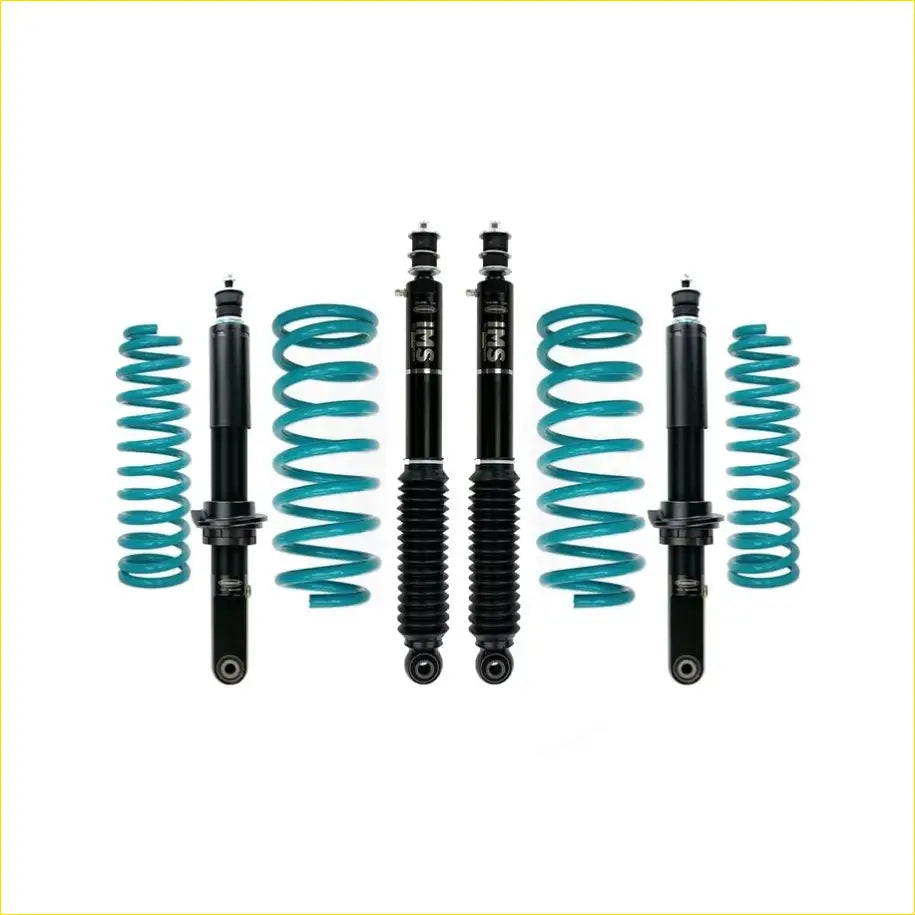

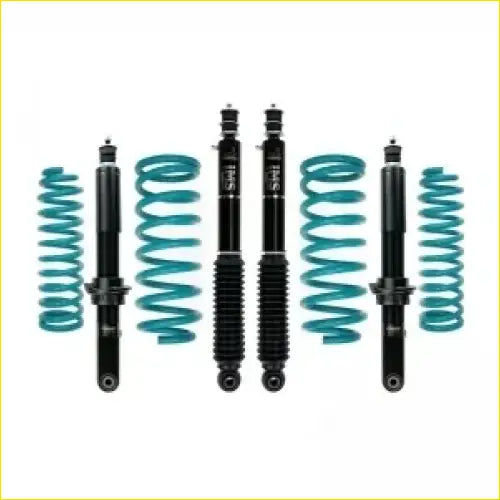

Isuzu MU-X UCS85 (2013 to Mid 2021) - Dobinsons IMS Monotube Lift Kit

Type: MU-X Model: UCS85 Year: 2013 to Mid 2021 Suspension Type: Coil Spring Front / Coil Spring Rear Front Lift: 45mm Rear Lift: 45mm Detail: 4x4 IFP/IMS monotube shock absorbers. The kit contains: 2x Dobinsons Front Coil Springs, 2x IMS21-50470 - IFP Monotube Front Shock absorbers (Adjustable Spring Seat Height X = 195mm / 7.48”), 2x IMS59-50940 - IFP Monotube Rear Shock absorbers, 2x Dobinsons Rear Coil Springs. Recommended Upgrades: Upgrade to Pre-Assembled Shocks with New Strut Tops (SC59-002). Optional Upgrades: 1x CR5133HP - Airbag Man - Air Suspension Helper Kit.

Make	Isuzu
Model	MU-X UCS85
Year Range	2013 to Mid 2021
Suspension Type	Coil Spring Front / Coil Spring Rear
Front Lift	45mm
Rear Lift	45mm
Shock Absorber Type	IFP Monotube
Piston Diameter	50/60mm
Shock Body Diameter	56mm / 66mm
Corrosion Resistance	EDP Surface Protection
