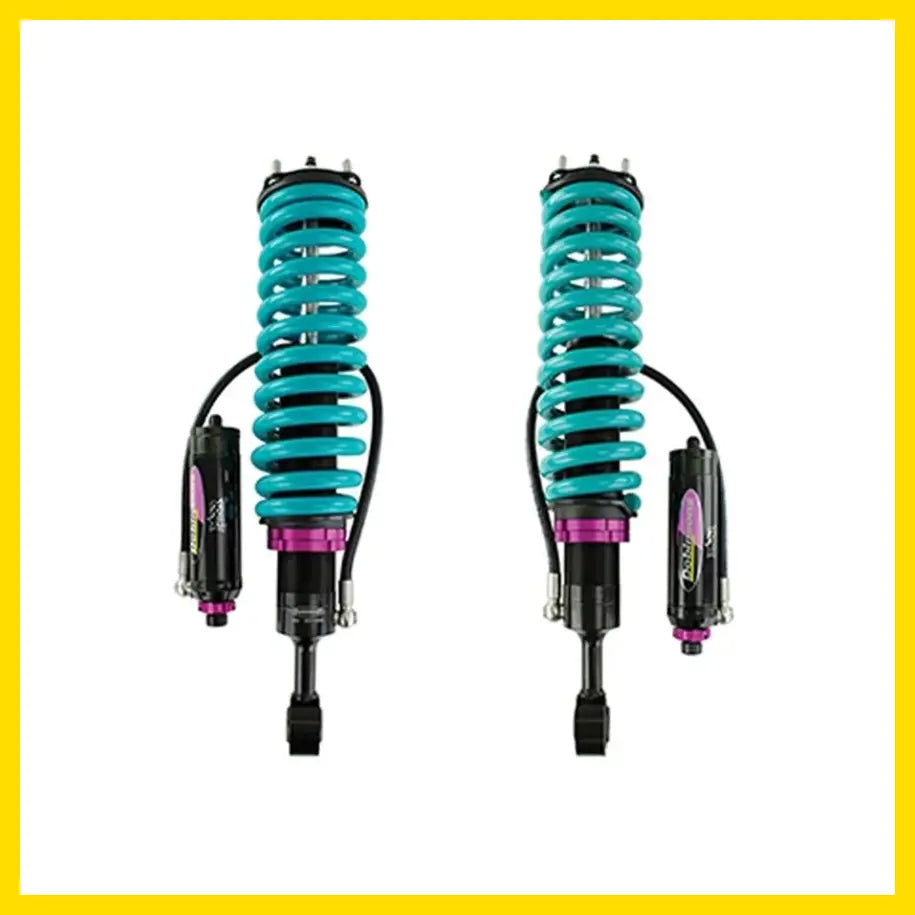

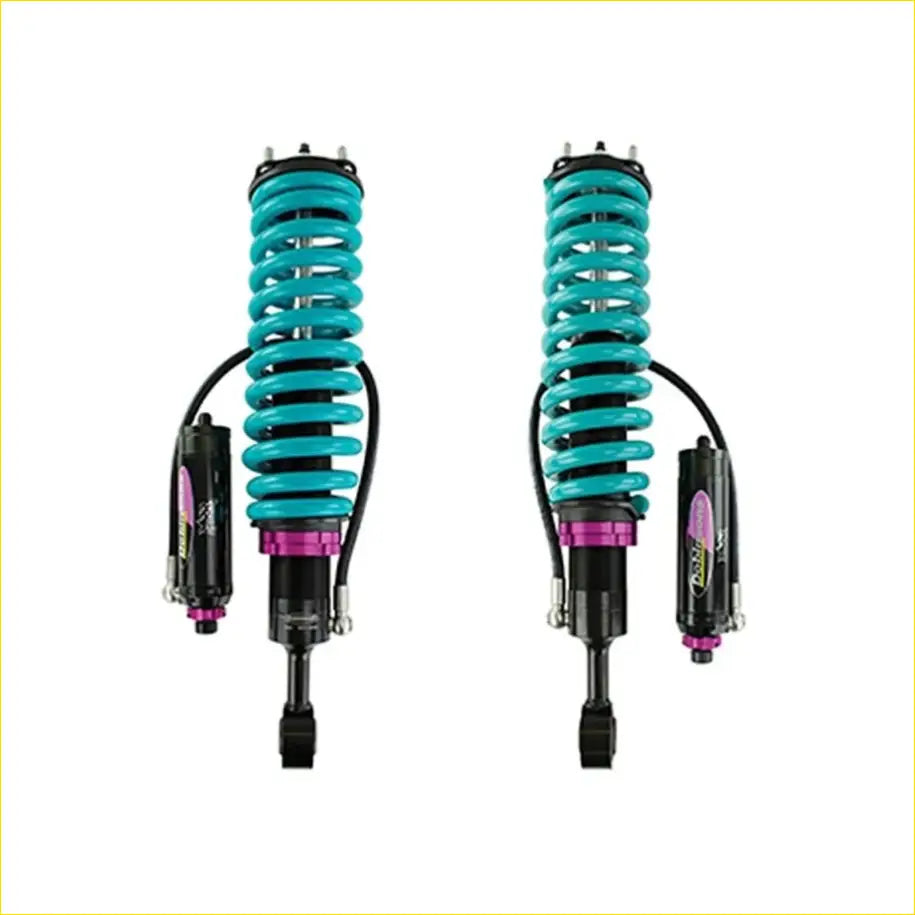

Isuzu MU-X UCS85 (2013 to Mid 2021) - Dobinsons Monotube Remote

This Dobinsons Monotube Remote Reservoir (MRA) Front Lift kit is designed for Isuzu MU-X UCS85 models from 2013 to mid-2021, providing a 45mm front lift. It features race-bred monotube technology with an advanced 3-way damping adjustment system, transforming your 4x4 into an ultimate off-road machine. Each component has been refined to offer superior ride quality, vehicle control, and enhanced shock absorber performance. The kit includes 2x Dobinsons Front Coil Springs and 2x MRA21-A470-2 Monotube Remote Reservoir (3-Way Adjustable) Front Shock absorbers. These preassembled struts come with new strut tops for easy installation. The innovative 6063 honed aluminium reservoir and revised light-weight floating piston significantly reduce shock absorber friction. This results in an improved vehicle ride and damping, alongside a vastly increased service life.

Vehicle Compatibility	Isuzu MU-X UCS85 (2013 to Mid 2021)
Lift Height	4.5 cm Front
Shock Absorber Type	Monotube Remote Reservoir (MRA)
Damping Adjustment	3-Way Adjustable (High/Low Speed Compression, Rebound)
High Speed Compression	10 Stage Adjustment
Low Speed Compression	20 Stage Adjustment
Rebound Adjustment	15 Stage Adjustment
Spring Seat Height	19.5 cm
Piston Diameter	50/60 mm
Reservoir Material	6063 Aluminium
