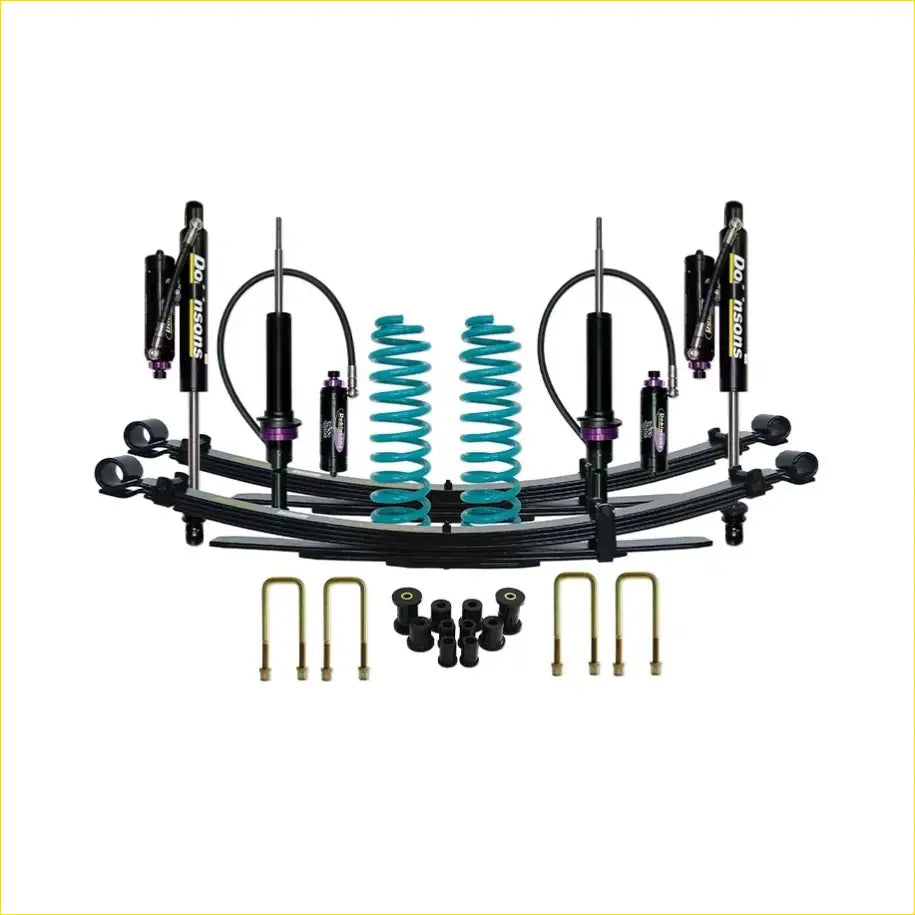

Mazda BT-50 Series III - TF (Mid 2020 on) - Dobinsons Monotube Remote

Type: BT-50 Model: Series III - TF Year: Mid 2020 on Suspension Type: Coil Spring Front / Leaf Spring Rear Front Lift: 75mm Rear Lift: 40-50mm Detail: 4x4 3\" Front - 2\" Rear 3-Way Damping Adjustment Remote Reservoir (MRA) Must fit UCA's and Diff Drop with this kit* MRR and MRA shocks come with generic mounting Brackets.The kit contains:2x Dobinsons Front Coil Springs 2x MRA21-A472-2 - Monotube Remote Reservoir (3-Way Adjustable) Front Shock absorbers Adjustable Spring Seat Height X = 195mm / 7.48” 2x MRA43-A081B - Monotube Remote Reservoir (3-Way Adjustable) Rear Shock absorbers 1x PB21-1111K - Polyurethane Bush Kit 4x UB59-437 - U-Bolts 2x Dobinsons Rear Leaf SpringsRecommended Upgrades:Upgrade to Pre-Assembled Shocks with New Strut Tops (SC59-002) 2x SK21-065 - Greasable Shackles & 2x SP59-060 - Greasable Shackle Pins 1x WA21-584K - Brakeline Extension Kit * Must Be Fitted With GS43-081B, IMS43-50081B, MR43-50081B & MRA43-A081B 1x UCA21-216K - Forged Aluminium (Pair) Non-Adjustable Increased Castor Without Ball Joint1x DD21-590K - Diff Drop Kit Decreases CV Angle

Make	Mazda
Model	BT-50
Series	Series III - TF - MY 2020 on
Suspension Type	Coil Spring Front / Leaf Spring Rear
Front Lift	75 mm
Rear Lift	40-50 mm
Damping Adjustment	3-Way Remote Reservoir (MRA)
High Speed Compression	10 Stage
Low Speed Compression	20 Stage
Rebound Adjustment	15 Stage
Reservoir Material	60 mm 6063 Aluminium
Shock Shaft	5140 HV900 Hard Chrome Plated, Heat treated 18 / 22 mm Micro-Polished
Shock Body	3 mm Thick Heavy Duty DOM Seamless 56 mm / 66 mm O.D.
Sealing System	Upgraded 3 Stage FKM-HNBR
Design Features	Fully Rebuild-able, Direct Bolt-On
