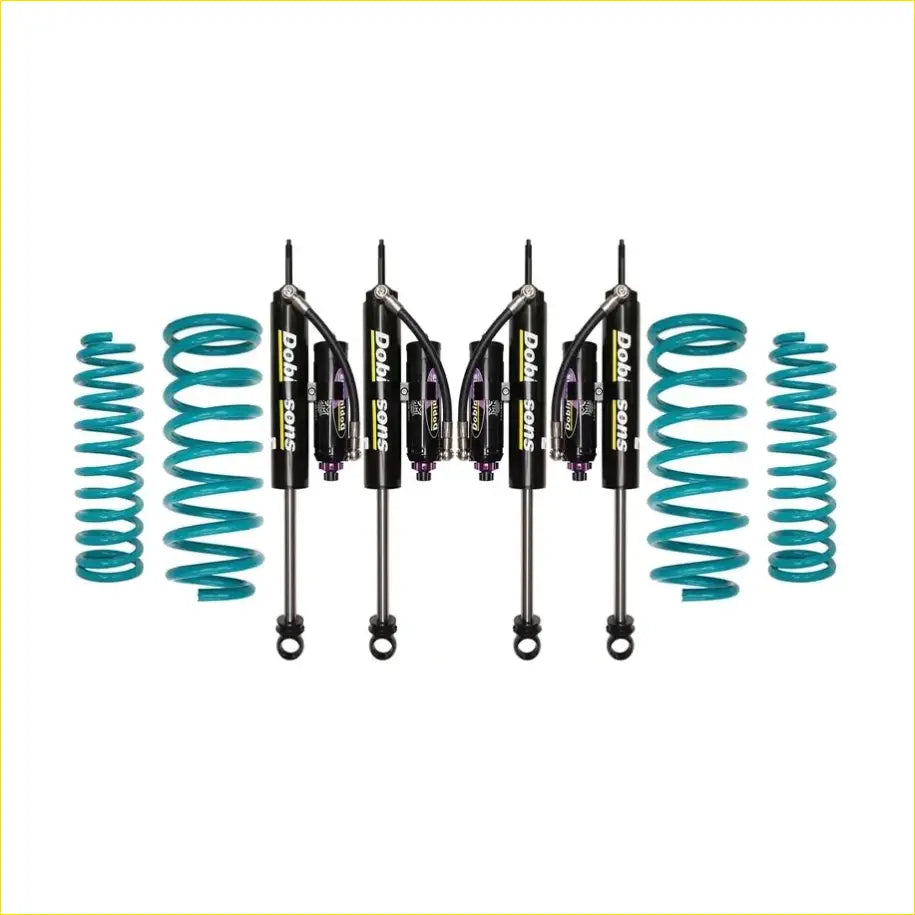

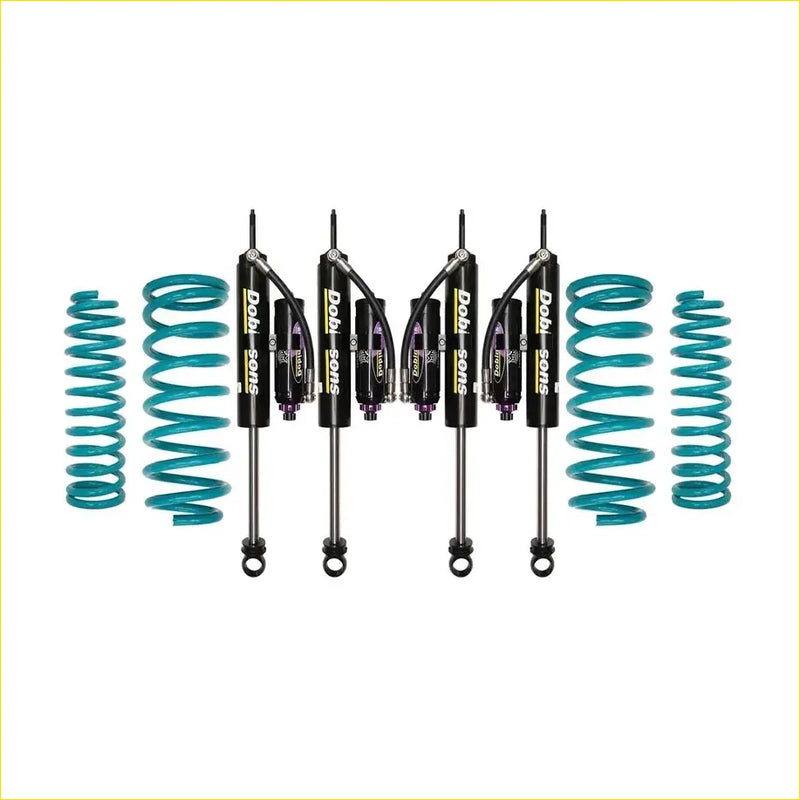

Nissan Patrol Y61 GU Ute (1997 on) - Dobinsons Monotube Remote

Built on the back of the race winning Monotube Remote Reservoir (MRR) shock absorbers, Dobinsons new range of MRR Adjustable shock absorbers combine the best in high performance race-bred Monotube technology, with an all new 3-way damping adjustment system to turn your 4x4 into the ultimate off-road machine. Each component of the MRR shock absorber has been refined and improved to offer a higher level of ride quality, vehicle control and shock absorber performance. The new 6063 honed aluminium reservoir, revised light-weight floating piston, Carbon Fibre/PTFE/Disulphide composite wear band, improved 3-stage sealing system and the ability to run lower gas pressure with the addition of the reservoir compression adjuster, have combined to provide massive reductions in shock absorber friction, resulting in an improved vehicle ride and damping performance. The revised sealing design now provides a 3 stage FKM-HNBR shaft seal system that, when combined with the reduced operating frictions, provides a vastly increased service life with reduced wear. The Micro-polished, hard chromed and heat treated shock shaft, revised CNC aluminium high flow race piston, and DOM Seamless tubing body provides the ultimate in performance and off-road durability. The 3-way adjustment design reduces the main piston working load, distributing heat more evenly between the main piston and the reservoir piston for reduced operating temperatures, and allows quick and easy damping changes for the ultimate in shock tunability in varying terrain and vehicle loads, to keep you controlled and comfortable. Enjoy the ride...

Make	Nissan
Model	Patrol Y61 GU Ute
Series	Y61 GU - (Pickup / Utility - Coil Rear) - 05/1999 on
Product Type	Full Lift Kit
Lift Height	40-50mm
Shock Type	Dobinsons MRA
Front Lift	30-60mm
Rear Lift	45-50mm
Compression Adjustment	10 Stage High Speed, 20 Stage Low Speed
Rebound Adjustment	15 Stage
Remote Reservoir	60mm 6063 Aluminium
Shaft Material	5140 HV900 Hard Chrome Plated, Heat treated 18/22mm Micro-Polished
Body Construction	3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D.
