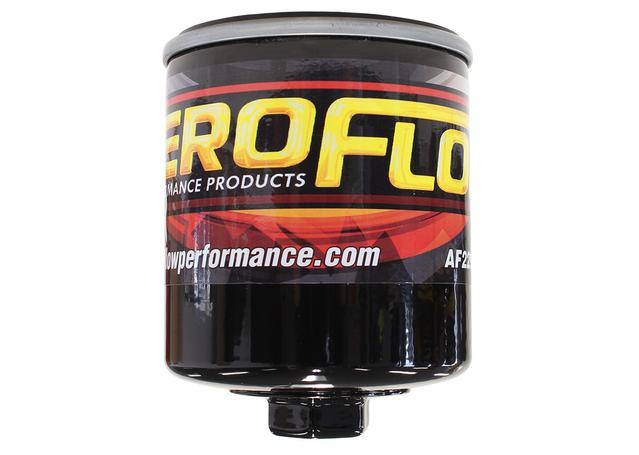

Aeroflow AF2296-1001 Oil Filter Fits Holden V6 Short Z154

Oil Filter

Aeroflow Oil Filters combine durability and easy removal in the new high performance filters. Originally designed for racers, these oil filters use AN improved coil spring design and feature AN extra-thick backing plate which provides added protection against pressure surges in racing applications. Featuring a Buna-N rubber gasket, these filters are compatible with almost all racing fuels and lubricants. In terms of filtration, these filters have a premium pleated synthetic blend media which provides increased filtration at high flow rates with minimal pressure drop.

Featuring AN unique louvered centre tube, this allows more flow area and eliminates media wear during pleat movement which increases flow. Having AN easy hex release nut, use a 24mm or 15/16" spanner/socket which will allow for simple and easy removal. Replace your tired old oil filter with AN Aeroflow Oil Filter today! Engineered for performance and durability, this is the new oil filter of choice for any application, street or track!

AF2296-1001 Vehicle Application (Z154):

DAEWOO
All Models - 0.8 3cyl, 1.5-1.6-1.8-2.0-2.2L (L4) 07/94-12/04
HOLDEN
Astra, LD, 1.6L (16LF), TR, 1.6 (C16SE), 1.8L (C18SEL), TS 1.8L (X18XE1) 07/87-99
Astra, TSII 1.8 L4 (Z18XE2) 10/01-04
Astra, TSII 2.0L L4 (Z20LET) 05/03-07/04
Astra, AH 1.8L L4 (Z18XE) 12/04-03/07
Astra, AH & AH Turbo 2.0L L4 (Z20LER) 06/06-03/10
Barina, SB 1.2-1.4-1.6L L4 (All Models) 04/94-04
Barina, XC 1.4-1.8L L4 (All Models) 02/01-12/05
Barina, TK 1.6L L4 (F16D3) 12/05-On
Calibra, YE 2.0L L4 (C20NE, C20XE, X20XEV) 10/91-95
Calibra, YE 2.5L V6 (X25XE) 08/95-07/98
Calibra, YE95 2.0L L4 (C20LET, C20XE) 08/95-98
Calibra, YE95 2.5L V6 (C25/B256) 08/95-07/98
Camira, JB 1.6L L4 (16JH) 08/82-84
Camira, JD 1.6L L4 (16JH) 11/84-86
Camira, JD 1.8L L4 (18JH) 11/84-86
Camira, JD 1.8 L4 (18JU) 02/86-87
Camira, JE 2.0L L4 (20JD) 04/87-89
Captiva, CG 2.4L L4 (F18D4) 11/09-On
Combo Van, SB 1.4L L4 (C14NZ) 03/96-97
Combo Van, XC 1.6L L4 (Z16SE) 09/02-05
Combo Van, XC 1.4L L4 (Z14XE) 05/05-On
Commodore Sedan/Wagon/Ute/StatesmAN VN-VY 3.8L V6 (88-04)
Frontera, M7 2.0L L4 (X20SE) 10/95-99
Frontera, MX 2.2L L4 (X22SE) 02/99-02
Rodeo, TFR2 & R9 2.2L (C22NE) 06/98-03
Rodeo, R9 2.2 L4 (C22NE) 06/98-02/03
Rodeo, RA 2.4L L4 (C24SE) 03/03-05
Rodeo, RA 2.4L L4 (Y24SE) 01/06-08
Tigra, XC 1.8L L4 (Z18XE) 0805-07
Vectra, JR 2.0L L4 (C20SEL) 06/97-08/98
Vectra, JR 2.5L V6 (X25XE) 06/97-/0898
Vectra, JS 2.0L L4 (C20SEL) 08/98-99
Vectra, JS 2.2L L4 (C22SEL) 08/98-99
Vectra, JSII 2.0L L4 (C20SEL) 07/99-01
Vectra, JSII 2.2L L4 (C22SEL) 07/99-03
Viva, JF 1.8L 4 cyl (F18D3) 10/05-05/09
VXR, AH T/Coupe 2.0L L4 (Z20LER) 10/06-09/09
NISSAN
Pulsar, N13 1.6L (Non Turbo) L4 (16LF) 07/87-89
Pulsar, N13 1.8L (Non Turbo) L4 (18LF) 07/87-91
SAAB
900, 2.5L V6 94-96
900S, 5 Door Quad Cam 2.5L V6 (B256/8) 03/94-98
TOYOTA
Lexcen - KT,MT,PT,ST T4 3.8L V6 89-97

AF2296-1001 Filter Specification:

Anti Drain Back Valve: Yes
Bypass Valve: No
Filter Material: High Flow Premium Media
Gasket Material: Nitrile Rubber
Height: 3.125 in (79 mm)
Outside Diameter: 3 in (76 mm)
PSI Relief Valve: None
Thread Specification: M18 x 1.5
Filter Removal Nut Size: 15/16" (24mm)
