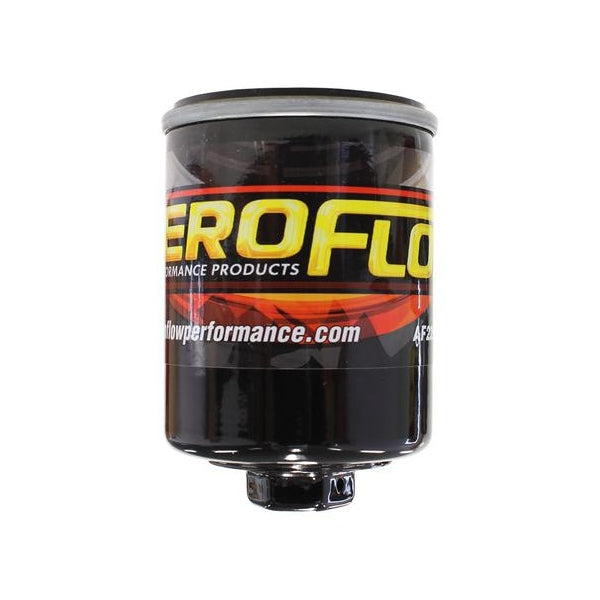

Aeroflow AF2296-1010 Oil Filter Fits Mitsubishi Mazda Z411, Z547
Oil Filter
Eunos, Ford, KIA, Mazda, Mitsubishi & Proton (Z411) M20 x 1.5
Aeroflow Oil Filters combine durability and easy removal in the new high performance filters. Originally designed for racers, these oil filters use AN improved coil spring design and feature AN extra-thick backing plate which provides added protection against pressure surges in racing applications. Featuring a Buna-N rubber gasket, these filters are compatible with almost all racing fuels and lubricants. In terms of filtration, these filters have a premium pleated synthetic blend media which provides increased filtration at high flow rates with minimal pressure drop.
Featuring AN unique louvered centre tube, this allows more flow area and eliminates media wear during pleat movement which increases flow. Having AN easy hex release nut, use a 24mm or 15/16"" spanner/socket which will allow for simple and easy removal. Replace your tired old oil filter with AN Aeroflow Oil Filter today! Engineered for performance and durability, this is the new oil filter of choice for any application, street or track!
AF2296-1010 Vehicle Application (Z411):
EUNOS
30X, EC 1.8L V6 (K8-ZE) 11/92-05/96
500, CA 2.0L V6 (KF-ZE) 11/92-05/96
800, TA 2.5L V6 (KL) 03/94-05/96
800M, TA J76E 2.3L V6 (KJ) 03-94-05/96
FORD
Courier, PC 2WD 2.6L L4 (G6) 10/91-96
Courier, PC,PD,PE,PG,PH & 4WD Model 2.6L L4 (G6 & G6E) 12/92-06
Probe, ST,SU,SV 2.5L V6 (KL) 06/94-98
Raider, UV 2.4L L4 (G6) 08/91-97
Telstar, AT,AV 2.5L V6 (KL) 01/92-96
KIA
Carnival Van, KV,KVII 2.5L V6 (K5) 09/99-06
Rio, BC 1.5L L4 (B5/A5D) 07/00-03
Rio, BC M-Tech 1.5L L4 (A5D) 01/03-05
MAZDA
323 Astina, BA11F 2.0L V6 ( (KF) 07/94-98
323 Protege, 2.0L V6 ( (KF) 07/94-09/98
B2600 & Bravo, 2.6L L4 (G6) 04/90-10/06
MPV, LV10E1,LV11E1 3.0L V6 (JE) 09/90-99
MX-6, GE10L1 4WS 2.5L V6 (KL-ZE) 11/91-94
MX-6, GE20 2WS & 4WS 2.5L V6 (KL-ZE) 09/94-97
MITSUBISHI
ASX (Petrol), GA 2.0L L4 (4B11) 07/10-On
ASX (Diesel), GA 1.8L L4 (4N13) 07/10-On
Colt, RG 1.5L L4 (4G15) 08/04-02/06
Colt, RG 1.5L L4 (4A91) 03/06-On
Colt, RG Turbo 1.5L L4 (4G15) 07/06-05/10
Colt, RZ Turbo 1.5L L4 (4G15/135950) 11/06-12/08
Express Van, SJ,SJ 2WD 2.0,2.4L L4 (4G63B/4G64B) 09/94-On
Express Van, WA 2.4L L4 (4G64B) 09/94-02
Galant, HJ1,2 2.0L L4 (4G63A) 04/93-95
Galant, HJ3,4 2.0L V6 (6A12A) 04/93-96
Lancer, CB,CC,CE,CH,CJ 1.5,1.6,1.8,2.0,2.4L (All Models) 12/91-On
Mirage, CE,CE11 1.5L L4 (4G15B) 07/96-04
Outlander, ZG,ZH 3.0L V6 (6B31) 10/06-On
Outlander, ZH 2.4L L4 (4B12) 10/09-On
Pajero I0, QA 3 Door 1.6L L4 (4G18) 03/99-09/01
Pajero I0, QA 5 Door 1.8L L4 (4G93) 03/99-09/01
Pajero I0, QAII 3 & 5 Door 2.0L L4 (4G63) 10/01-03
Starwagon, SJ Satalite 2.0L L4 (4G63B) 09/95-97
Starwagon, WA 2.0,2.4L L4 Carb & EFI (4G63/4G64) 97-05/04
Triton (Petrol), ML 2.4L L4 (4G64B) 03/07-08/09
Triton (Petrol), MN 2.4L L4 (4G64) 10/09-On
PROTON
Jumbuck Ute, C97P 1.5L L4 (4G15P) 02/03-On
M21 2D Coupe, C99D 1.8L L4 4G93P) 09/97-00
Persona, C97,C98L 1.6L L4 (4G93P) 11/96-11/00
Persona, C96L 1.3L L4 (4G13P) 09/99-06/02
Satria, C97M,C98M 1.6L L4 (4G92P) 02/97-11/00
Satria, C96M GL 1.3L L4 (4G13P) 07/99-02
Satria, C99M GTI 1.8L L4 (4G93PA) 09/99-05
Waja, CF 1.6L L4 (4G18P-S4) 11/01-05
Wira, C97,C98 1.6L L4 (4G92P) 05/95-96
AF2296-1010 Filter Specification:
Anti Drain Back Valve: Yes
Bypass Valve: Yes
Filter Material: High Flow Premium Media
Gasket Material: Nitrile Rubber
Height: 3.75 in (95 mm)
Outside Diameter: 2.688 in (68 mm)
PSI Relief Valve: 11-17
Thread Specification: M20 x 1.5
Removal Nut Size: 15/16"
