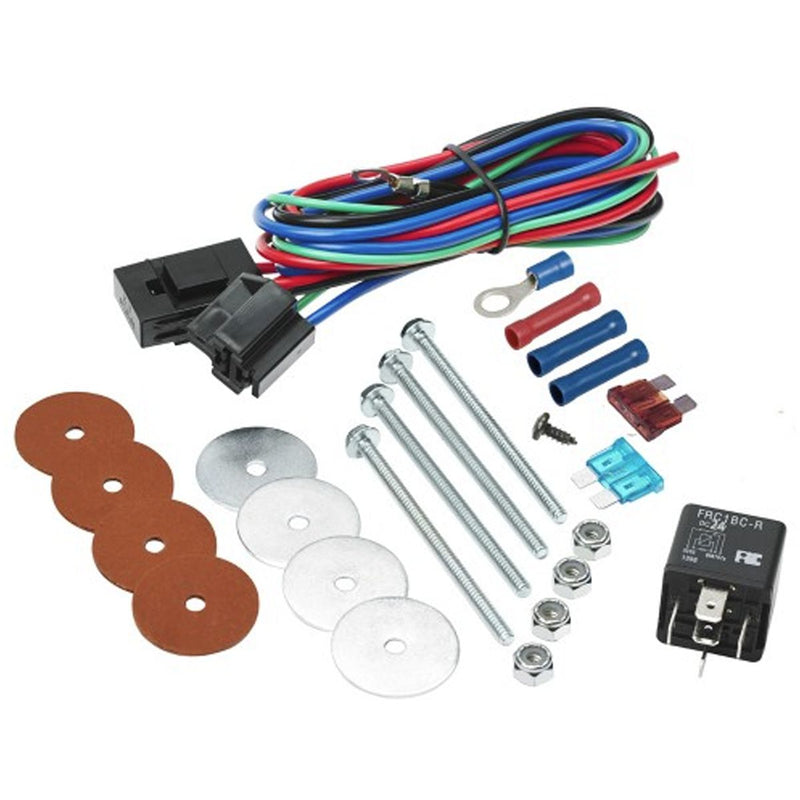

Davies, Craig Universal Fan Mounting Kit 24V 1001
NOW
$124.80
afterpay
Or 4 interest-free payments of
$31.20
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Note the direction of the arrow on the hub/blade. Once the fan is installed the arrow may not be visible.
Position the fan assembly directly on the face of the radiator/condenser. For upstream operation, take care the fan assembly does not foul any struts, bonnet latches etc. For downstream operation take care fan assembly does not foul pulleys, belts etc.
Depending on the space available and the presence of an AC condenser, you may prefer to remove the radiator to ease the fitting procedure.
Separate the radiator fins at the four points where the mounting bolts are to be positioned. Use a ''Phillips head'' screw-driver or very blunt instrument to separate the fins, being careful not to damage the tubes
Secure fan to the radiator using the hardware provided. Ensure the long bolts, fibre and metal washers along with nuts provided are placed in the correct sequence, as per the diagram above.
0586 FUSE WEDGE 7.5 AMP x 1
0588 FUSE WEDGE 15AMP x 1
0513 SCOTCH LOCK 3M 564 x 1
0529 NUT NYLOC 3/16 x 4
0534 RELAY - 24V 40 AMP 5 PIN WITH RESISTOR PROTECTION x 1
0504 BOLT HEX W/F 3x3/16 x 4
0556 WASHER - FIBRE RED x 4
0559 WASHER MUDGUARD SILVER x 4
0512 CONNECTOR (BLUE) 2072 x 2
0532 HARNESS 24VOLT x 1
0550 RING TERMINAL x 1
0613 SCREW - SELF TAP 8X3/8 BZ x 1
10956 Universal Fan Hardware Kit 12V / 24V Instructions x 1
Position the fan assembly directly on the face of the radiator/condenser. For upstream operation, take care the fan assembly does not foul any struts, bonnet latches etc. For downstream operation take care fan assembly does not foul pulleys, belts etc.
Depending on the space available and the presence of an AC condenser, you may prefer to remove the radiator to ease the fitting procedure.
Separate the radiator fins at the four points where the mounting bolts are to be positioned. Use a ''Phillips head'' screw-driver or very blunt instrument to separate the fins, being careful not to damage the tubes
Secure fan to the radiator using the hardware provided. Ensure the long bolts, fibre and metal washers along with nuts provided are placed in the correct sequence, as per the diagram above.
0586 FUSE WEDGE 7.5 AMP x 1
0588 FUSE WEDGE 15AMP x 1
0513 SCOTCH LOCK 3M 564 x 1
0529 NUT NYLOC 3/16 x 4
0534 RELAY - 24V 40 AMP 5 PIN WITH RESISTOR PROTECTION x 1
0504 BOLT HEX W/F 3x3/16 x 4
0556 WASHER - FIBRE RED x 4
0559 WASHER MUDGUARD SILVER x 4
0512 CONNECTOR (BLUE) 2072 x 2
0532 HARNESS 24VOLT x 1
0550 RING TERMINAL x 1
0613 SCREW - SELF TAP 8X3/8 BZ x 1
10956 Universal Fan Hardware Kit 12V / 24V Instructions x 1
