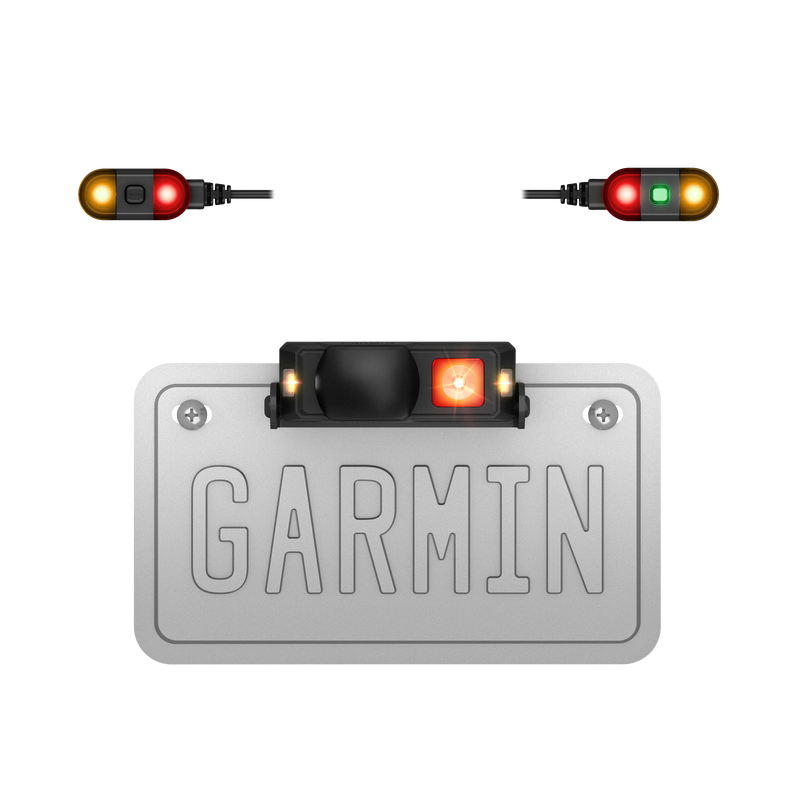

Garmin zmo R1 Radar Motorcycle Radar

RIDE AND SEE
This high-performance rearview and blind spot motorcycle radar monitors vehicles around you, promoting greater awareness of nearby vehicles1. Plus, the external lights help you be seen by other vehicles to help foster a safer riding environment.

Radar and indicator lights offer excellent range, accuracy and situational awareness.

Side- and rear-facing external lights increase the visibility of your motorcycle.

Heads-up indicator lights provide awareness of vehicles around you.

The small design discreetly mounts above or below your license plate.

Audio alerts inform you of nearby vehicles (when paired with your headset via the zmo Radar smartphone app).

View a full-screen radar display when paired with your compatible smartphone or a zmo XT2 motorcycle sat nav.

RADAR COVERAGE: Motorcycle rearview and blind spot radar offers excellent coverage, range and accuracy to help increase situational awareness. Radar can be displayed when paired with your compatible smartphone or your zmo XT2 device.

EXTERNAL LIGHTS: Side-facing amber lights and the optional rear-facing red light enhance your motorcycles visibility to other vehicles to help foster a safer riding environment.

ENHANCED AWARENESS: Heads-up indicator lights can increase your awareness of other vehicles in your blind spots or behind you as you ride.

STEALTH DESIGN: The rugged, small and sleek design mounts discreetly to your motorcycles license plate while blending into the bike.

AUDIO ALERTS: Hear alerts informing you of nearby vehicles while your eyes remain on the road ahead. This requires pairing with your compatible headset via the zmo Radar smartphone app.

RADAR DISPLAY: zmo R1 Radar can pair with your compatible smartphone or your zmo XT2 navigation device to see a full-screen radar display of vehicles around you.

BUILT TOUGH: zmo R1 Radar has a rugged design (IP67 dust/water rating) to withstand harsh weather and road conditions.

TIDY INSTALL: Once installed, zmo R1 Radar will power on and off with the motorcycles ignition no batteries or charging required.

Specifications:

• Sensor dimensions (LxWxD): 78.75 x 26.95 x 30 mm
• Light dimensions (LxWxD): 42.56 x 17.31 x 14 mm
• Sensor weight, with cable, without mounts: 142.8 g
• Lights weight, with cable, without mounts: 97.4 g
• Radar mounts: Licence plate bracket or versatile panel mount
• Handlebar indicator mounts: Mirror post bracket, zip ties or adhesive mounts
• Power source: Wired 12 V power (installation required)
• BLE: Yes (for smartphone app and zumo)
• Water rating: IP67
• Status indicator: Yes
• Power/Mode button: Yes
• Automatic shut down when parked: Yes (after 10 min)
• Radar detection distance: Up to 60 metres
• Radar detection angle (horizontal): 170
• Minimum radar operational speed: 24 kph (15 mph)
• Rear-facing external red light: Yes
• Side-facing external amber lights: Yes
• Setting for enabling/disabling external facing lights: Yes
• Light sensor for automatic brightness dimming: Yes
• Heads-up vehicle in blindspot alerts when moving: Yes
• Heads-up approaching vehicle alerts when moving: Yes
• Audio alerts with paired headset: Yes (when paired with compatible smartphone or zumo XT2 sat nav)
• Setting for enabling/disabling audio alerts: Yes (when paired with compatible smartphone or zumo XT2 sat nav)
• Full-screen radar display: Yes (when paired with compatible smartphone or zumo XT2 sat nav)

What's in the Box:

• zmo R1 Radar
• Indicator lights
• Motorcycle mount and hardware
• Documentation
