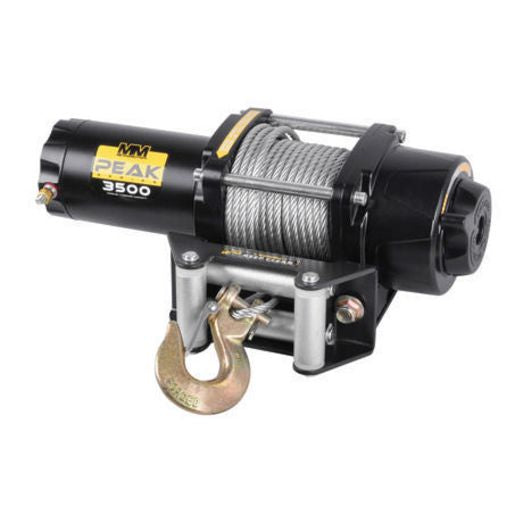

Mean Mother 4x4 Peak Electric Winch 3500lb EW3500
NOW
$928.20
afterpay
Or 4 interest-free payments of
$232.05
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Mean Mother ATV 3500lb winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles.
The 3500lb ATV Winches are supplied with a universal mounting plate for easy installation. Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).
Features:
General Information:
Performance of 1st Layer:
Line Pull & Cable Capacity by Layer
What's Included:
The 3500lb ATV Winches are supplied with a universal mounting plate for easy installation. Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).
Features:
- Forward and reverse operation with Free spool function
- Two Stage Planetary quality components Sintered Steel Bushes & Hardened Steel Gears
- Waterproof contactor (solenoid) system. Permanently mounts to ATV
- Waterproof quality plug with protective cap
- Mountable handle bar Forward and reverse toggle switch
- Thimble in cable eyelet provides reinforcement and maximum strength
- 5.56mm x 12m (3500lb) 7-19 Construction galvanised aircraft cable
General Information:
- Specifications 3500lb (1589kg)
- Voltage 12 Volt
- Gear Ratio 242:1
- Gear Tran 2 Stage Planetary
- Clutch Turn 90 by handle
- Motor Type
- Permanent magnet
- Motor 3.5 Hp, 2.61 Kw
- Control Handle bar mountable switch, 2.4m lead
- Braking Self Locking brake
- Drum Size 50mm x 80mm(2.5" x 3.15")
- Cable 5.56mm x 12m (3500lb) 7-19 Construction galvanised aircraft cable.
- Clevis Hook 1/4"
- Overall Dimensions 344.5mm x 116mm x 114mm (13.5" x 4.57" x 4.5")
- Net Weight 11.4kg
- Mounting Bolt Pattern 124mm x 76mm (4.88" x 3")
- Battery Power Cables 2 x 2350mm x 10mm
- Motor Power Cables 1 x 600mm x 10mm & 1 x 450mm x 8mm
- Recommended Battery Minimum 650CCA
- Finish Powder Coated
Performance of 1st Layer:
- Line Pull Line Speed Motor Amp Draw Voltage
- 0 lbs 0 kgs 18.4 Fpm 5.6 Mpm 30 12 Volt
- 1000 lbs 454 kgs 15 Fpm 4.6 Mpm 86 12 Volt
- 2000 lbs 907 kgs 13.1 Fpm 4 Mpm 136 12 Volt
- 3500 lbs 1589kgs 9.8 Fpm 3 Mpm 230 12 Volt
Line Pull & Cable Capacity by Layer
- Cable Layer Rated Line Pull Cable Capacity
- 1 3500 lbs 1589 kgs 9.2 Feet 2.8 Metres
- 2 2900 lbs 1317kgs 20.3 Feet 6.2 Metres
- 3 2500 lbs 1135 kgs 33.1 Feet 10.1 Metres
- 4 2200 lbs 1000 kgs 47.6 Feet 14.5 Metres
- 5 1900 lbs 863 kgs 50 Feet 15 Metres
What's Included:
- Winch
- Winch mounting plate
- Solenoid (contactor)
- Handle bar switch with mounting bracket
- Power cable kit
- 5.56mm x 12m (3500lb) 7-19 Construction galvanised aircraft cable.
- Roller Fairlead
- 1/4" Clevis Hook
- Hand Saver Hook Strap
- Detailed Instruction Manual
- Warranty registration Card
- Winch and Fairlead Mounting Hardware (Bolts, washer and Nuts)
