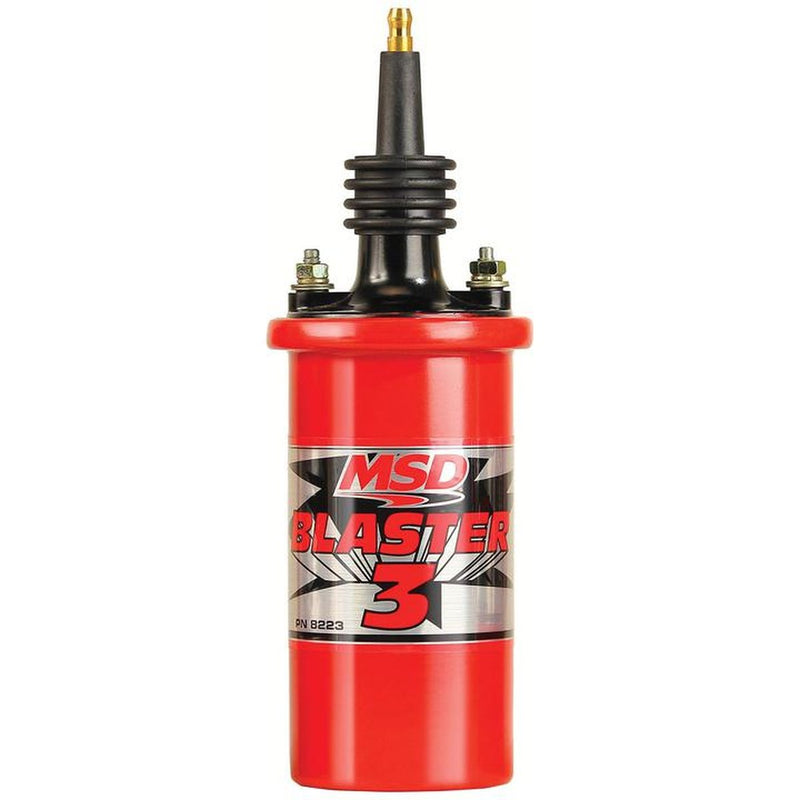

MSD Coil Blaster 3 MSD8223
NOW
$280.80
afterpay
Or 4 interest-free payments of
$70.20
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6 or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil filled metal canister.
The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark. Each Blaster Coil can be used with a stock ignition, Blaster Ignition, MSD 5, 6 or 7 Ignition Control.
Most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application. Mallory Unilite applications also require the ballast resistor.
Features:
- Extra tall secondary tower for secure coil wire connection
- Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)• 100:1 turns ratio and lower primary resistance produce high voltage output
- MSD Red metal canister is filled with a premium grade oil for cooling
- Supplied with a 90° spark plug style terminal and boot
- CARB E.O. Approved
Specifications:
Brand MSD
Emission Code 1
Inductance 8 mH
Maximum voltage 45,000 Volts
Peak current 140 mA
Primary resistance .7 OHMs
Product Type Coil
Secondary resistance 4.5K OHMs
Spark duration 350 uS
Turns ratio 100:1
Weight N/A
The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark. Each Blaster Coil can be used with a stock ignition, Blaster Ignition, MSD 5, 6 or 7 Ignition Control.
Most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application. Mallory Unilite applications also require the ballast resistor.
Features:
- Extra tall secondary tower for secure coil wire connection
- Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)• 100:1 turns ratio and lower primary resistance produce high voltage output
- MSD Red metal canister is filled with a premium grade oil for cooling
- Supplied with a 90° spark plug style terminal and boot
- CARB E.O. Approved
Specifications:
Brand MSD
Emission Code 1
Inductance 8 mH
Maximum voltage 45,000 Volts
Peak current 140 mA
Primary resistance .7 OHMs
Product Type Coil
Secondary resistance 4.5K OHMs
Spark duration 350 uS
Turns ratio 100:1
Weight N/A
