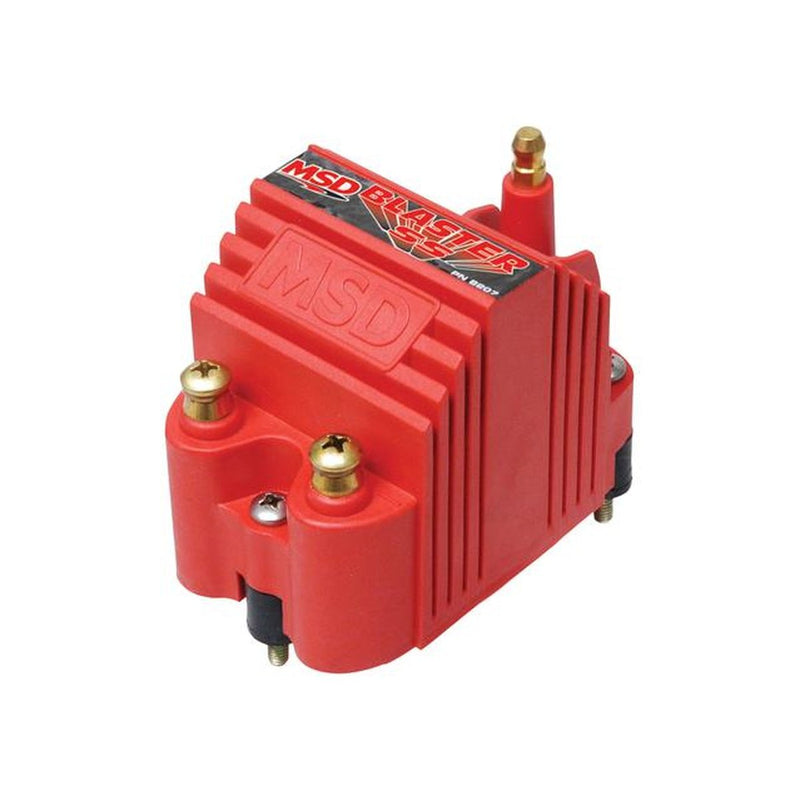

MSD Coil Blaster SS High Voltage MSD8207

Dont let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and a maximum voltage output of 40,000 volts!The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The Blaster SS features brass terminals and a sturdy housing. It is supplied with a 90 boot, terminal and vibration mounts. A great addition to CD Ignitions and some stock applications.Features:- Improved output coil for electronic ignitions, and MSD Ignitions- Efficient winding design and assembly creates a compact housing- Primary and secondary windings are encased in Ciba polyurethane- 70:1 turns ratio and lower primary resistance produce high voltage output- Tough, rigid housing with a tall tower and brass primary terminals- CARB E.O. D-40-37Specifications:Brand MSDColor RedEmission Code 1Inductance 6.9 mHPeak current 300 mAPrimary resistance .355 OHMsProduct Type CoilSecondary resistance 4.4K OHMsSpark duration 220 uSTurns ratio 70:1Weight N/A
