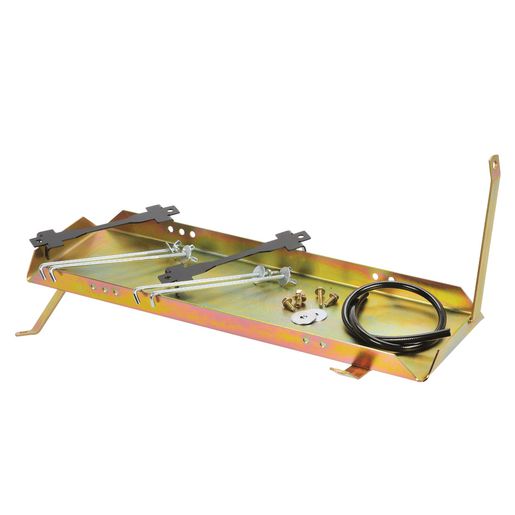

PROJECTA Battery Tray fits Mitsubishi Triton 07-15 HDBT202
NOW
$668.20
afterpay
Or 4 interest-free payments of
$167.05
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Battery Tray for Triton Auto/Manual 4M41 DID 3.2 Litre & 4D56 2.5 Litre Turbo Diesel, 6G74 3.5 Litre V6 Petrol & 4G64 2.4 Litre Petrol (2006-2014)
Custom-made for the Mitsubishi Triton, the HDBT202 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Universal Top Mount
600mm Vac Hose
2 x M6 Bolt Hex
2 x M6 Washer
1 x M6 Bolt Long
1 x M8 Short
SPECIFICATIONS
Max Battery Size (mm) L300 x W174 x H220 Petrol,
L265 x W174 x H220 Diesel
Max Battery Weight 23Kg Petrol, 18Kg Diesel
Recommended batteries Exide LCS 27-97, Century N70TMF (Petrol)
Exide LCS 24-86, Century NS70T (Diesel)
Approximate fitting time 1.5 hours
Special tools None required
Recommended Dual Battery System Petrol: can use IDC25, DBC150 or VSR200 Diesel: can use IDC25, DBC100 or VSR100
Tray Location Engine Bay, Passenger Side (Replacement of original tray)
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect both negative and positive battery terminals from the main battery and remove main battery
2. Remove existing plastic battery tray
3. Remove bracket and clips that holds existing loom onto the inner guard.
4. Remove 13mm vacuum hose from engine and vacuum canister, replace later with lengthened 13mm hose, provided.
5. Loom and hoses below vacuum canister need to be re-routed towards the firewall.
6. Slide tray under loom into position bolt M6 long bolt into the captive nut next to the dipstick.
7. Use the M8 short bolt to bolt rear arm of the tray to the bracket of the firewall.
8. Using the 2 x M6 (Hex) bolts, bolt into remaining support holes, ensuring M6 body washers and nuts under guards. Existing holes may need enlarging, realign earth lead to provide room.
9. Place Auxiliary battery in rear tray towards the firewall.
10. When placing in original battery run wiring and new lengthened 13mm hose between the two batteries.
11. Fit the J bolts and the universal top mounts to the batteries.
12. Reconnect the negative and positive battery terminals to the main starter battery or install the desired. Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.
Custom-made for the Mitsubishi Triton, the HDBT202 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Universal Top Mount
600mm Vac Hose
2 x M6 Bolt Hex
2 x M6 Washer
1 x M6 Bolt Long
1 x M8 Short
SPECIFICATIONS
Max Battery Size (mm) L300 x W174 x H220 Petrol,
L265 x W174 x H220 Diesel
Max Battery Weight 23Kg Petrol, 18Kg Diesel
Recommended batteries Exide LCS 27-97, Century N70TMF (Petrol)
Exide LCS 24-86, Century NS70T (Diesel)
Approximate fitting time 1.5 hours
Special tools None required
Recommended Dual Battery System Petrol: can use IDC25, DBC150 or VSR200 Diesel: can use IDC25, DBC100 or VSR100
Tray Location Engine Bay, Passenger Side (Replacement of original tray)
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect both negative and positive battery terminals from the main battery and remove main battery
2. Remove existing plastic battery tray
3. Remove bracket and clips that holds existing loom onto the inner guard.
4. Remove 13mm vacuum hose from engine and vacuum canister, replace later with lengthened 13mm hose, provided.
5. Loom and hoses below vacuum canister need to be re-routed towards the firewall.
6. Slide tray under loom into position bolt M6 long bolt into the captive nut next to the dipstick.
7. Use the M8 short bolt to bolt rear arm of the tray to the bracket of the firewall.
8. Using the 2 x M6 (Hex) bolts, bolt into remaining support holes, ensuring M6 body washers and nuts under guards. Existing holes may need enlarging, realign earth lead to provide room.
9. Place Auxiliary battery in rear tray towards the firewall.
10. When placing in original battery run wiring and new lengthened 13mm hose between the two batteries.
11. Fit the J bolts and the universal top mounts to the batteries.
12. Reconnect the negative and positive battery terminals to the main starter battery or install the desired. Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.
