PROJECTA Battery Tray fits Toyota Hilux HDBT116

Battery Tray for Auto/Manual Hilux 126 Series 2.8 Litre Turbo Diesel, Fortuner 126 Series 2.8 Litre Turbo Diesel (2015 >)

Custom-made for the Toyota Hilux 126 Series, the HDBT116 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.

Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!

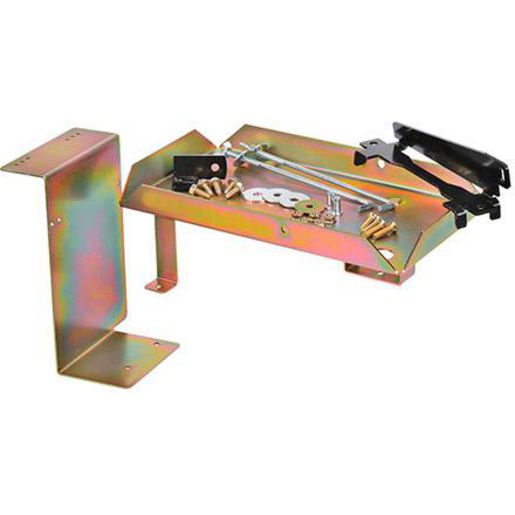

KIT INCLUDES
Tray
Special Top Mount
Top Mount Anchor Bracket
Isolator Mounting Bracket
J Bolts
4 x M6 Countersunk Bolts
6 x M6 Nuts
5 x M6 Bolts Short
1 x Special Space Washer
3 x Body Washers
2 x M6 Nutserts

SPECIFICATIONS
Max Battery Size (mm) L265 x W174 x H220
Max Battery Weight 23Kg
Recommended batteries Exide LCS24-86 and Century NS70T
Approximate fitting time 1 hour
Special tools Rivet nut insertion tool
Recommended Dual Battery System P/No: IDC25
Tray Location Engine Bay, Passenger side near firewall

WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.

FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Bolt isolator mounting bracket to tray using 2 x M6 counter sunk bolts and nuts.
3. Place tray in position placing spacer washer underneath front hole in tray closest to guard. Without tightening, screw M6 counter sunk bolt to captive nut.
4. Line up other holes and using M6 bolt with nut and body washer secure rear arm closest to engine.
5. Install an M6 bolt through front of tray, secure with nut and body washer under guard.
6. Drill hole through guard at the rear of the tray closest to the guard and secure with M6 countersunk bolt, nut and body washer.
7. Free mould on top of guard and locate the top mount anchor bracket through existing slot in mould. Mark position on guard. Remove moulding.
8. Using top mount Anchor Bracket mark hole centre and drill two 9mm holes. Using a Rivet Nut gun install 2 x Nutserts (Supplied) in to top of guard. Insert M6 bolts and secure anchor bracket to top of guard.
9. Remove fuse lid to gain clearance and install battery, this will be a tight fit. Secure with Special top Mount and J bolts with an M6 bolt and nut to secure to Top Mount Anchor Bracket.
10. Reconnect the negative battery terminal to the main starter battery. Before closing the bonnet make sure the battery and tray does not hit the bonnet.
