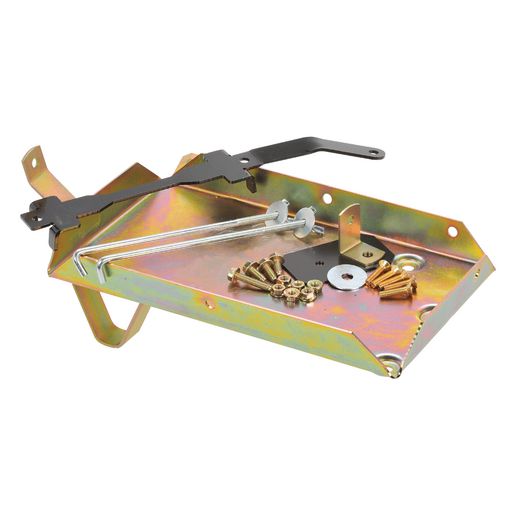

PROJECTA Battery Tray fits Toyota Prado 120 HDBT110
NOW
$507.00
afterpay
Or 4 interest-free payments of
$126.75
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Battery Tray for Toyota Prado Auto/Manual 120 Diesel 1KD–FTV, 3.0 Litre Turbo Diesel (2003-2009)
Custom-made for the Toyota Prado 120, the HDBT110 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
Right Angle Bracket
Tray Support Bracket
J Bolts
4 x M6 Nut
2 x M6 Bolt
5 x M6 Bolts counter sunk
1 x M6 Washer
SPECIFICATIONS
Max Battery Size (mm) L300x W174 x H220
Max Battery Weight 23Kg
Recommended batteries Exide LCS 27-97 & Century N70TMF
Approximate fitting time 1 hour
Special tools None required
Recommended Dual Battery System P/n: IDC25, DBC100 (can use DBC150), VSR100 (can use VSR200)
Tray Location Engine Bay, Passenger side near firewall
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Locate the area where the tray will be fitted.
3. Unclip wiring loom and bolt in supplied right angle bracket using 1 x M6 bolt and nut. Hole created after unclipping loom clip.
4. Unbolt junction of earth wires from inner guard, discard bolt.
5. Fit the tray in position using 3 x M6 counter sunk bolts into captive nuts.
6. Using the long M6 bolt and washer replace earth strap and junction of wires together with the battery tray arm to the inner guard using M6 captive nut.
7. Drill 2 x 6mm holes through the mount on the tray and through the wheel arch.
8. Push through 2 x M6 bolts through the holes and the wheel arch then support plate on the underside of the wheel arch. Tighten M6 nuts.
9. Place battery into position install supplied top mount, line up to top radiator support and using a 6mm drill, drill through into the metal of the radiator support. DO NOT follow through drilling as you will damage the head light. Secure top mount with M6 bolt and nut.
10. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery and tray do not hit the bonnet.
Custom-made for the Toyota Prado 120, the HDBT110 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
Right Angle Bracket
Tray Support Bracket
J Bolts
4 x M6 Nut
2 x M6 Bolt
5 x M6 Bolts counter sunk
1 x M6 Washer
SPECIFICATIONS
Max Battery Size (mm) L300x W174 x H220
Max Battery Weight 23Kg
Recommended batteries Exide LCS 27-97 & Century N70TMF
Approximate fitting time 1 hour
Special tools None required
Recommended Dual Battery System P/n: IDC25, DBC100 (can use DBC150), VSR100 (can use VSR200)
Tray Location Engine Bay, Passenger side near firewall
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Locate the area where the tray will be fitted.
3. Unclip wiring loom and bolt in supplied right angle bracket using 1 x M6 bolt and nut. Hole created after unclipping loom clip.
4. Unbolt junction of earth wires from inner guard, discard bolt.
5. Fit the tray in position using 3 x M6 counter sunk bolts into captive nuts.
6. Using the long M6 bolt and washer replace earth strap and junction of wires together with the battery tray arm to the inner guard using M6 captive nut.
7. Drill 2 x 6mm holes through the mount on the tray and through the wheel arch.
8. Push through 2 x M6 bolts through the holes and the wheel arch then support plate on the underside of the wheel arch. Tighten M6 nuts.
9. Place battery into position install supplied top mount, line up to top radiator support and using a 6mm drill, drill through into the metal of the radiator support. DO NOT follow through drilling as you will damage the head light. Secure top mount with M6 bolt and nut.
10. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery and tray do not hit the bonnet.
