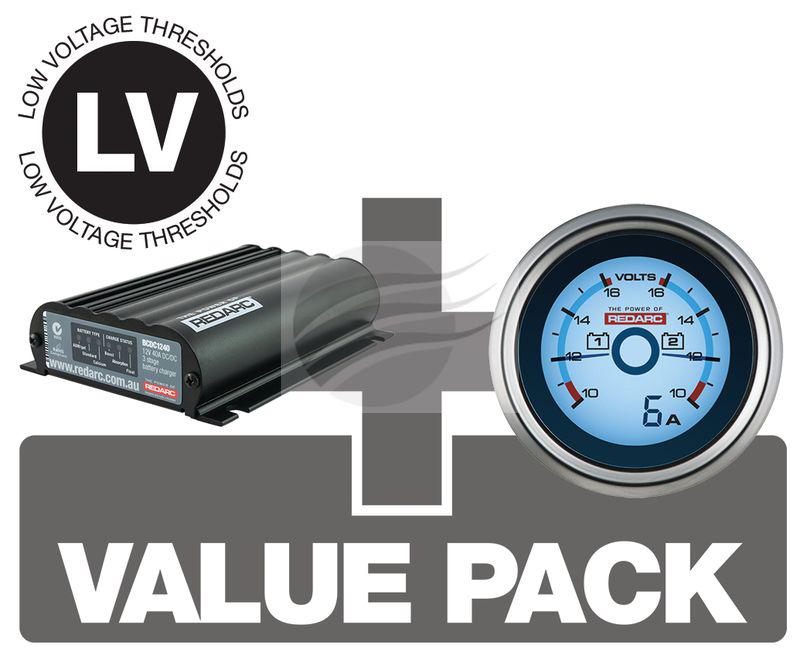

REDARC DC-DC Battery Charger & Voltmeter BCDC1240L-GK
NOW
$1,108.90
afterpay
Or 4 interest-free payments of
$277.22
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
This value pack comes sporting two of REDARC's most handy products - the BCDC1240-LV REDARC DC to DC Battery Charger and their G52-VVA Dual Voltage 52mm Gauge.
The 40A In-Vehicle DC Smart Battery Charger is designed to keep your auxiliary battery charged while driving. If you have solar panels installed, it can also use that power supply to keep your battery charged even when you're parked. Multi-stage DC to DC charging keeps your auxiliary battery charged at the optimum level, plus it can act as a dual battery isolator to protect your starter battery when the voltage drops below appropriate levels. The BCDC1225 is suited for use with 12V and 24V systems. The Smart Charger is compact, easy to install, and completely sealed to keep it protected from water, dust, and vibration. Its protections make it a great fit for any driver - even those who enjoy taking to Australia's harshest conditions, like outback tracks and deep water crossings. It's even hardy enough for marine applications!
The Charger will act as a dual-battery isolator to help protect the start the battery whenever its voltage level gets too low.
REDARC's Dual-Voltage 52mm Gauge is the perfect device for monitoring the battery systems mounted in your 4WD, camper, caravan, and other similar vehicles. An easy-to-read LCD/LED screen clearly displays exhibits all of the relevant information you need regarding the charging performance of your main and auxiliary batteries. If your alternator or system fails, the reading on the gauge will drop as your battery discharges. If your system is experiencing an overcharging issue, the display will show the voltage climbing above its normal range. The device's pre-set alert levels will let you know when your system has dropped below 11V or climbed above 16V to by changing colour to amber or red and beeping. This empowers you to respond as quickly as possible to any issue and avoid worst-case scenarios.
The REDARC DC-to-DC charger and 52mm gauge are delivered with a 2-year manufacturer's warranty covering faults and material defects.
Specs
BCDC1240-LV DC to DC Charger
Input (Operating) Voltage: 9 - 32VDC
Maximum Charging Voltage: 15.4V
Input Current (Max.): 40A
Input Fuse Rating: 60A
Output Current Rating (Cont.): 40A
Standby Current Draw: <100mA
Output Power: 600W
Output Fuse Rating: 60A
Output System Voltage: 12VDC
Length (mm): 150
Width (mm): 120
Height (mm): 37
Weight (kg): 0.68
Dual-Voltage 52mm Gauge
Standby Current Draw: 30mA
Input (Operating) Voltage: 6 - 16V
Height (mm): 42
Weight (kg): 0.05
The 40A In-Vehicle DC Smart Battery Charger is designed to keep your auxiliary battery charged while driving. If you have solar panels installed, it can also use that power supply to keep your battery charged even when you're parked. Multi-stage DC to DC charging keeps your auxiliary battery charged at the optimum level, plus it can act as a dual battery isolator to protect your starter battery when the voltage drops below appropriate levels. The BCDC1225 is suited for use with 12V and 24V systems. The Smart Charger is compact, easy to install, and completely sealed to keep it protected from water, dust, and vibration. Its protections make it a great fit for any driver - even those who enjoy taking to Australia's harshest conditions, like outback tracks and deep water crossings. It's even hardy enough for marine applications!
The Charger will act as a dual-battery isolator to help protect the start the battery whenever its voltage level gets too low.
REDARC's Dual-Voltage 52mm Gauge is the perfect device for monitoring the battery systems mounted in your 4WD, camper, caravan, and other similar vehicles. An easy-to-read LCD/LED screen clearly displays exhibits all of the relevant information you need regarding the charging performance of your main and auxiliary batteries. If your alternator or system fails, the reading on the gauge will drop as your battery discharges. If your system is experiencing an overcharging issue, the display will show the voltage climbing above its normal range. The device's pre-set alert levels will let you know when your system has dropped below 11V or climbed above 16V to by changing colour to amber or red and beeping. This empowers you to respond as quickly as possible to any issue and avoid worst-case scenarios.
The REDARC DC-to-DC charger and 52mm gauge are delivered with a 2-year manufacturer's warranty covering faults and material defects.
Specs
BCDC1240-LV DC to DC Charger
Input (Operating) Voltage: 9 - 32VDC
Maximum Charging Voltage: 15.4V
Input Current (Max.): 40A
Input Fuse Rating: 60A
Output Current Rating (Cont.): 40A
Standby Current Draw: <100mA
Output Power: 600W
Output Fuse Rating: 60A
Output System Voltage: 12VDC
Length (mm): 150
Width (mm): 120
Height (mm): 37
Weight (kg): 0.68
Dual-Voltage 52mm Gauge
Standby Current Draw: 30mA
Input (Operating) Voltage: 6 - 16V
Height (mm): 42
Weight (kg): 0.05
