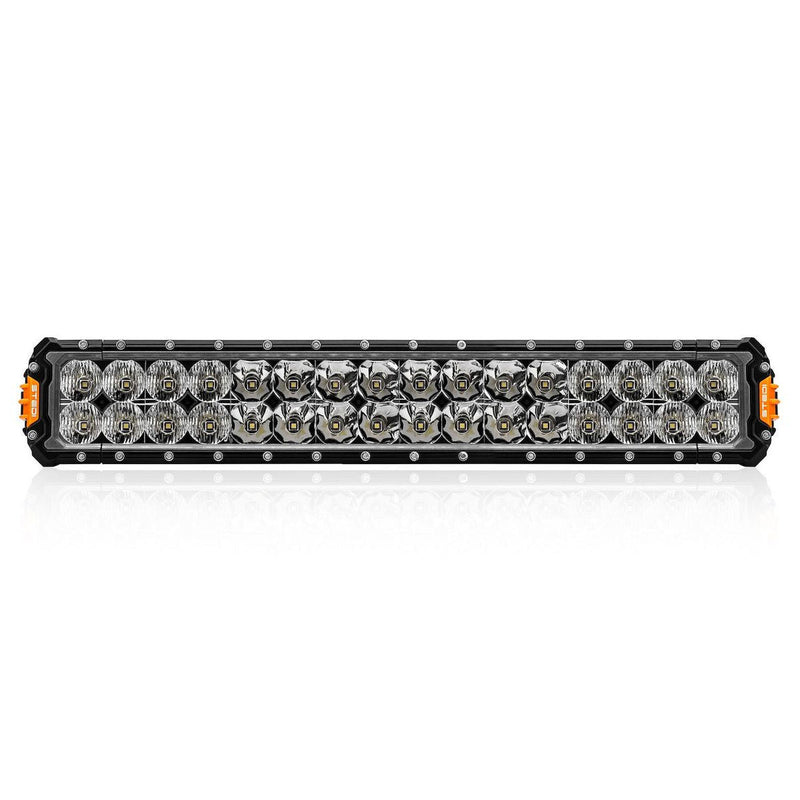

STEDI Ultra High Ouput Light Bar Double Row 32 LED ST3303 Pro 233 Inch LED3303PRO32L
NOW
$837.20
afterpay
Or 4 interest-free payments of
$209.30
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
There's noone in the lighting game doing what STEDI's doing at the moment. The ST3303-PRO is an aggregation of all things that have made them the globally distributed, coveted brand born right here in Australia.
At the core of this new and improved product line are CREE LEDs. So, STEDI commissioned CREE’s XPL HI emitter, which represents a +9% increase in lumen output at the same drive current over the already great (but now aging) CREE XM-L2 found in the previous model. 9% doesn’t sound like much, but the kicker is that the emitter die size drops down from 5 x 5mm to 3.5 x 3.5mm. Higher lumen density with tighter source improves the optic and emitter size relationship – STEDI has effectively increased the optic diameter by 40% without physically increasing it. The result is huge light volume and tremendous beam throw.
It's important to note that with these increases, accommodations must be made. The current draw is enormous, and quite literally unlike anything else on the market. The 60 LED variant draws 36 amp at 13.6v & @ 12.5v 40 amp. Now, you must, without any exception, we repeat, you must use the heavy-duty, dual-relay (yes dual relay!), dual-fused wiring harness we supply. The current is so intense, the 40 LED and 60 LED bars have two separate power cables (yes two separate power cables!) on either side of the light bar, and two separate breathers (yep two!) to deal with the enormous current draw.
Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakeably STEDI.
SPECIFICATIONS
LED: 32 x CREE XPL Hi-Intensity LED
Voltage: 9V - 32V
Current Draw (Amperes): 16.7a @ 13.6v
Raw Lumens: 35,040Lm
Effective Lumens: 17,920Lm
Peak Intensity: 474,721d
Colour Temperature (CCT): 5700K
Lens Material: Optical Grade, Hard-Coated Lexan
Housing Material: A360.0 Cast face plate, extruded Aluminum heat sink
Ingress Protection: IP68
Flood Beam: 50°
Spot Beam: 9°
Lifespan: 50,000hrs
Operating Temperature: -40°C ~ +150°C
Weight: 2.85kg
At the core of this new and improved product line are CREE LEDs. So, STEDI commissioned CREE’s XPL HI emitter, which represents a +9% increase in lumen output at the same drive current over the already great (but now aging) CREE XM-L2 found in the previous model. 9% doesn’t sound like much, but the kicker is that the emitter die size drops down from 5 x 5mm to 3.5 x 3.5mm. Higher lumen density with tighter source improves the optic and emitter size relationship – STEDI has effectively increased the optic diameter by 40% without physically increasing it. The result is huge light volume and tremendous beam throw.
It's important to note that with these increases, accommodations must be made. The current draw is enormous, and quite literally unlike anything else on the market. The 60 LED variant draws 36 amp at 13.6v & @ 12.5v 40 amp. Now, you must, without any exception, we repeat, you must use the heavy-duty, dual-relay (yes dual relay!), dual-fused wiring harness we supply. The current is so intense, the 40 LED and 60 LED bars have two separate power cables (yes two separate power cables!) on either side of the light bar, and two separate breathers (yep two!) to deal with the enormous current draw.
Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakeably STEDI.
SPECIFICATIONS
LED: 32 x CREE XPL Hi-Intensity LED
Voltage: 9V - 32V
Current Draw (Amperes): 16.7a @ 13.6v
Raw Lumens: 35,040Lm
Effective Lumens: 17,920Lm
Peak Intensity: 474,721d
Colour Temperature (CCT): 5700K
Lens Material: Optical Grade, Hard-Coated Lexan
Housing Material: A360.0 Cast face plate, extruded Aluminum heat sink
Ingress Protection: IP68
Flood Beam: 50°
Spot Beam: 9°
Lifespan: 50,000hrs
Operating Temperature: -40°C ~ +150°C
Weight: 2.85kg
