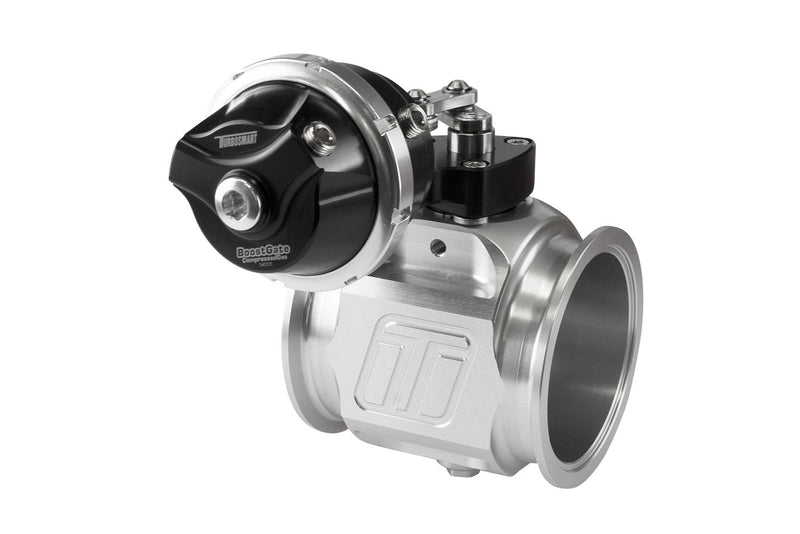

Turbosmart PBG76CG Boostgate Compress Gas 7PSI Black TS-0267-1242
NOW
$2,226.12
afterpay
Or 4 interest-free payments of
$556.53
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Charge Air Control Made Easy
The Compressed Gas BoostGate76 takes Turbosmarts award winning electronic BoostGate and simplifies the control system with a diaphragm style actuator built specifically for use with Compressed Gas / CO2 boost controllers. Designed to specifically to work with the high pressure levels that come along with CO2 and compressed gas boost control Turbosmarts Compressed Gas specific BoostGates feature a custom Nomex diaphragm design especially for fill and spill style boost control systems.
Unlike a traditional external wastegates, which bypass exhaust gas around the turbine housing to reduce turbocharger shaft speed and effectively, boost levels Charge Air Control is a controlled bleed of the compressed air on the cold side of the turbocharger system (ie boost). Mounted to the charge pipe, the Compressed Gas BoostGate can be used to modulate boost pressure directly, rather than the indirect method of traditional hot side boost control.
Charge Air Control is specifically suited to applications like drag racing where turbocharger specifications have already been optimized and the turbine housing is not a limiting performance factor (ie engine pressure ratios below 1). Turbosmart BoostGates use a zero offset butterfly-styled valve that enables incredible resolution, enormous flow and the kind of boost control required to deliver the perfect pass, every time.
Features:
The Compressed Gas BoostGate76 takes Turbosmarts award winning electronic BoostGate and simplifies the control system with a diaphragm style actuator built specifically for use with Compressed Gas / CO2 boost controllers. Designed to specifically to work with the high pressure levels that come along with CO2 and compressed gas boost control Turbosmarts Compressed Gas specific BoostGates feature a custom Nomex diaphragm design especially for fill and spill style boost control systems.
Unlike a traditional external wastegates, which bypass exhaust gas around the turbine housing to reduce turbocharger shaft speed and effectively, boost levels Charge Air Control is a controlled bleed of the compressed air on the cold side of the turbocharger system (ie boost). Mounted to the charge pipe, the Compressed Gas BoostGate can be used to modulate boost pressure directly, rather than the indirect method of traditional hot side boost control.
Charge Air Control is specifically suited to applications like drag racing where turbocharger specifications have already been optimized and the turbine housing is not a limiting performance factor (ie engine pressure ratios below 1). Turbosmart BoostGates use a zero offset butterfly-styled valve that enables incredible resolution, enormous flow and the kind of boost control required to deliver the perfect pass, every time.
Features:
- Designed Specifically for CO2 Applications
- Simple Pneumatic Control
- 76mm (3.00in) Butterfly style zero-offset valve
- 723.7 CFM / 20.49m3 per minute flow
- Stainless steel (630) Butterfly and shaft
- Billet Aluminium Main Body
- 360-degree mounting options on V-band
- Clock-able actuator positions (3 x 120 Deg options)
