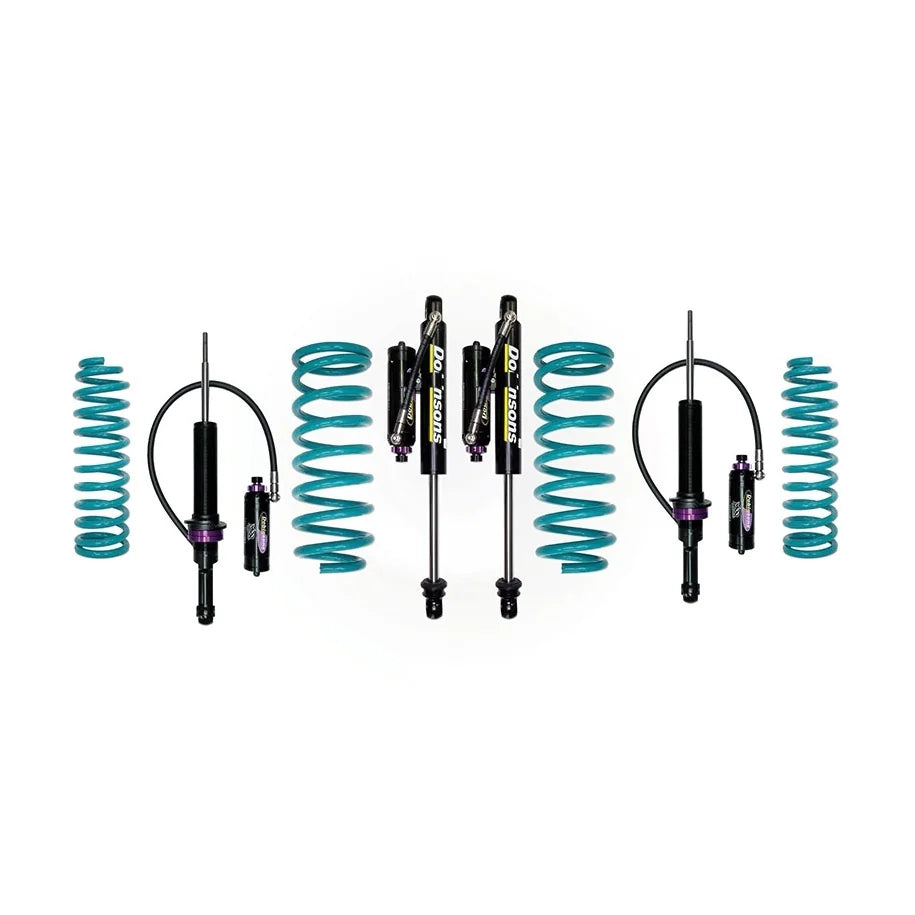

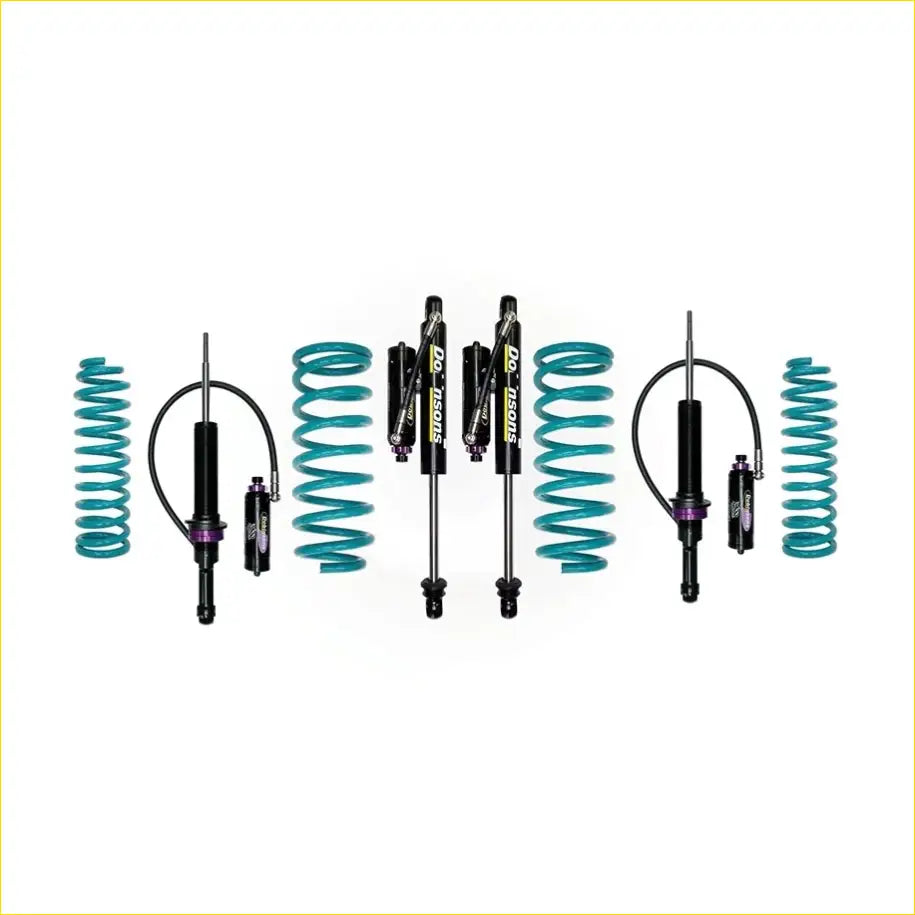

Toyota Fortuner (07/2015 on) - Dobinsons Monotube Remote Reservoir

Type: Fortuner Model: N160,N156 Year: 07/2015 on Suspension Type: Coil Spring Front / Coil Spring Rear Front Lift: 45mm Rear Lift: 30-45mm Detail: 4x4 Wagon* MRR and MRA shocks come with generic mounting Brackets. The kit contains: 2x Dobinsons Front Coil Springs (Pair) 2x MRA59-A228 - Monotube Remote Reservoir (3-Way Adjustable) Front Shock absorbers Adjustable Spring Seat Height X = 226mm / 8.9" 2x MRA59-A701 - Monotube Remote Reservoir (3-Way Adjustable) Rear Shock absorbers 1x BA59-007 - Headlight Sensor Extension 2x Dobinsons Rear Coil Springs (Pair) Recommended Upgrades: Upgrade to Pre-Assembled Shocks with New Strut Tops (SC59-001) Optional Upgrades: 1x WA59-553K - Tailshaft Cetre Bearing Spacer

Vehicle Compatibility	Toyota Fortuner (N160, N156) 07/2015 Onwards
Suspension Type	Coil Spring Front / Coil Spring Rear
Front Lift	45mm
Rear Lift	30-45mm
Shock Absorber Type	Dobinsons MRA Monotube Remote Reservoir
Compression Adjustment	10-Stage High Speed, 20-Stage Low Speed
Rebound Adjustment	15-Stage
Shock Shaft Material	5140 HV900 Hard Chrome Plated, Heat Treated 18/22mm
Remote Reservoir	60mm 6063 Aluminium
Sealing System	Upgraded 3 Stage FKM-HNBR
