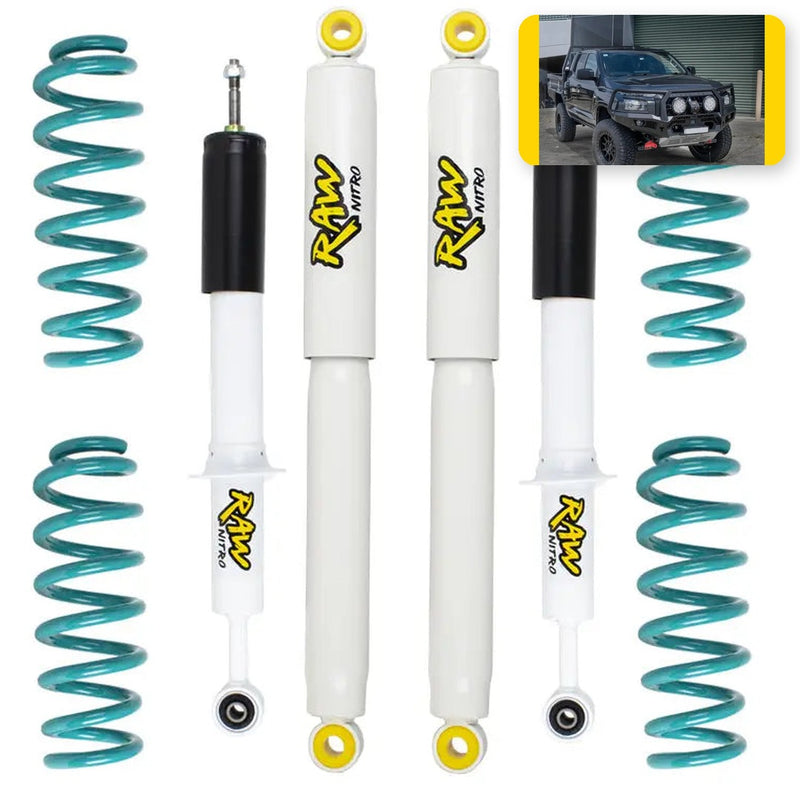

Isuzu MU-X (2020-2024) – 2" RAW 4x4 Lift Kit
| What's in the kit | |
|---|---|
| 2x | Dobinsons front coil springs (rate as selected) |
| 2x | Dobinsons rear coil springs (rate as selected) |
| 2x | RAW 4x4 Nitro Heavy Duty front struts |
| 2x | RAW 4x4 Nitro Heavy Duty rear shocks |
Front & Rear Coil Springs — Dobinsons
Every coil in this kit — front and rear — is manufactured by Dobinsons Spring & Suspension at their facility in Central Queensland, Australia — one of the world's largest coil spring producers, certified to ISO 9001:2008.
Because your vehicle runs coil springs at all four corners (not leaf springs at the rear), this kit includes Dobinsons coils on both axles — the same engineering and quality front and back.
Dobinsons coils aren't generic off-the-shelf springs. Each one is precision wound on a programmable logic computer for consistent pitch and rate — critical when you're running variable or progressive rate springs that need to behave predictably under changing load.
What goes into every Dobinsons coil
- Hot wound & heat treated — hardened and tempered in an electronically controlled furnace to eliminate breakage and sagging
- Shot peened — the surface is cold-worked under high-intensity shot peening to dramatically increase fatigue life and resist cracking
- 100% scragged & load tested — every spring is pre-compressed to its working load and beyond, settling it permanently so it holds its height and won't sag over time
- Precision mandrel wound — engineered end configurations fit directly into your vehicle's original mounting points with no modification
- Powder coated — durable finish protects against stone chips, mud, salt and NZ weather
Front coil spring rate options
| Option | Best for |
|---|---|
| Standard rate | Stock front end — no bullbar, light accessories |
| Bullbar / winch rate | Steel bullbar, winch, driving lights or a combination of front-mounted accessories adding constant load |
Rear coil spring rate options
| Option | Best for |
|---|---|
| Standard rate | Light rear end — no canopy, minimal tub weight |
| Heavy Duty / Constant Load rate | Canopy, drawers, fridge, toolboxes — weight you carry most of the time |
Not sure which rate? Call the Kren Offroad team on 09 885 9795 — we'll match the spring to your setup.
Shocks & Struts — RAW 4x4 Nitro Heavy Duty
The shocks in this kit are from RAW 4x4's Nitro Heavy Duty range (G series) — purpose-built for lifted 4x4s that work harder than stock. RAW 4x4 is an Australian suspension manufacturer based in New South Wales, supplying everything from recreational builds to armoured military vehicles.
Every Nitro shock is engineered with a larger-than-OE bore and nitrogen gas charge to handle the increased loads and travel that come with a lifted suspension.
What's inside every RAW Nitro HD shock
- Nitrogen gas charged — pressurised nitrogen resists oil aeration (foaming) under hard, repeated use, so damping stays consistent on long corrugated roads where cheaper shocks fade
- Increased bore size — larger-than-OE 35 mm bore reduces internal operating pressure and allows more oil capacity, which means better heat dissipation and longer service life
- Expanded body for extra oil capacity — more fluid volume means more heat can be absorbed before performance drops — critical on back-to-back corrugated sections or towing in summer
- High-performance hydraulic oil — formulated for consistent performance across a wide temperature range, from cold NZ mornings to sustained off-road heat
- HNBR seal with wiper lip — premium seal material that keeps dust and grime out while retaining oil, far more durable than standard rubber seals in harsh environments
- Hardened polished chrome rod (struts) — the piston rod is hardened and polished to a mirror finish, reducing seal wear and extending strut life significantly
- Bonded rubber lower bushes (struts) — provide extra articulation and longevity compared to bolt-through bushes, giving a smoother ride and reducing NVH
- Re-coil cut-off — an internal stop that prevents damage at full articulation, protecting the shock from bottoming out when the suspension is fully extended off-road
RAW 4x4 shock range
| Series | Type | Best for |
|---|---|---|
| Nitro HD (G series) ✔ (this kit) | Heavy Duty | Lifted vehicles, daily driving, light to moderate off-road — the standard shock in every RAW kit |
| Nitro Max (NM series) | Extra Heavy Duty | Mining, long-distance touring, heavy towing — 41 mm truck bore, tuneable disc valving, maximum heat dissipation |
| Predator | Performance | Adjustable remote-reservoir — serious off-road builds and competition use |
Warranty
2 years / unlimited km — covers manufacturing defects in materials and workmanship. No kilometre cap.
